.jpg)
.png)
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$305.26 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

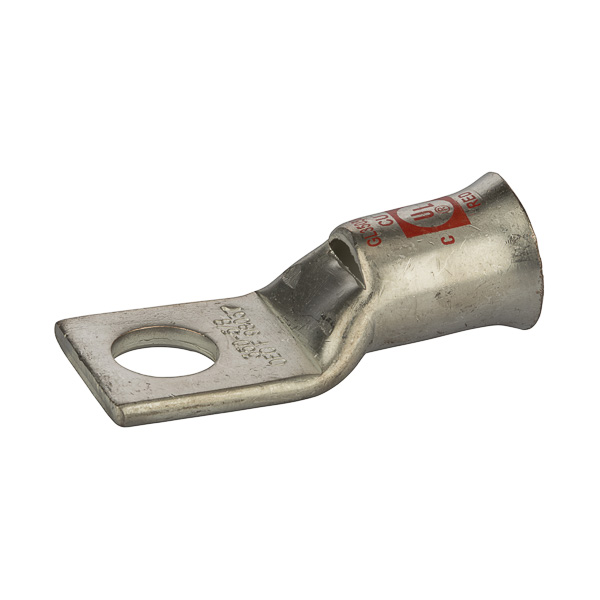

1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 350 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance....
1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 350 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
150
- UPC
- 662381336521
- Color:
- Red
- Material:
- Copper
- Size:
- L=2.61 - W=1.28 - OD=.870 - ID=.700
- Type:
- Short Barrel - One Hole - Belled End
- Voltage Rating:
- 600 V
- Cable Size:
- 350 MCM (STR)
- Color:
- Red
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 5/8 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=2.61 - W=1.28 - OD=.870 - ID=.700
- Standard:
- UL486
- Stud Size:
- 0.625 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - One Hole - Belled End
- Voltage Rating:
- 600 V
Recently Viewed
-
CD17A
NSI INDUSTRIES

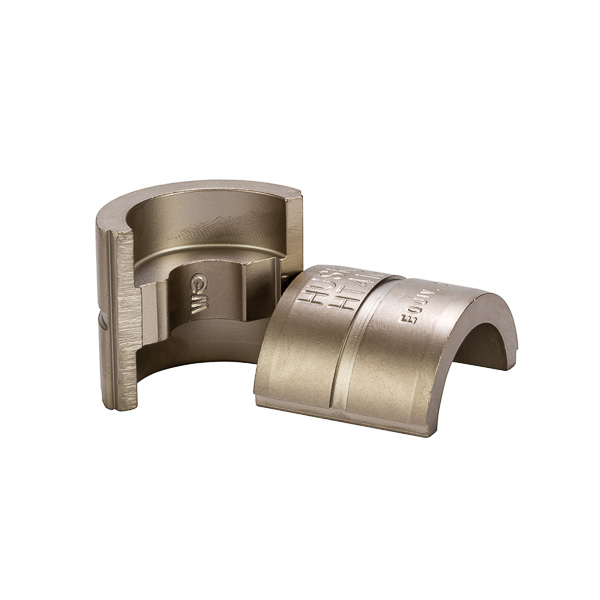

U-Type Compression Die - Blue 400 MCM Copper - 300 MCM Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools...
See more details -
30361W
MULBERRY METAL PRODUCTS
Mulberry; Cover; Material: Heavy Duty Die Cast Zinc, Stainless Steel Screws; Finish: Powder Coated; Shape: Rectangular; Number Of Outlet: 3; Color: Wh...
See more details -
IPLG6-4
NSI INDUSTRIES

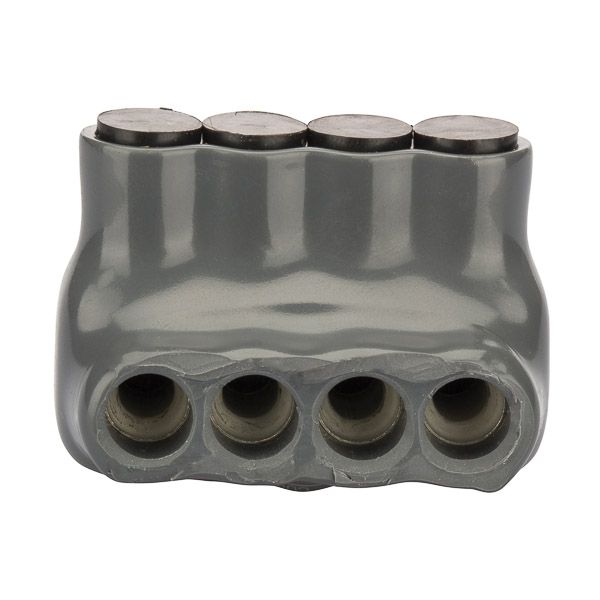

4Wire Polaris Grey Insulated Connector for6-14 AWG Fine-Stranded Flexible Copper Conductors Polaris GreyInsul-Tap Connectors are suitable for connecti...
See more details -
HB812
NSI INDUSTRIES

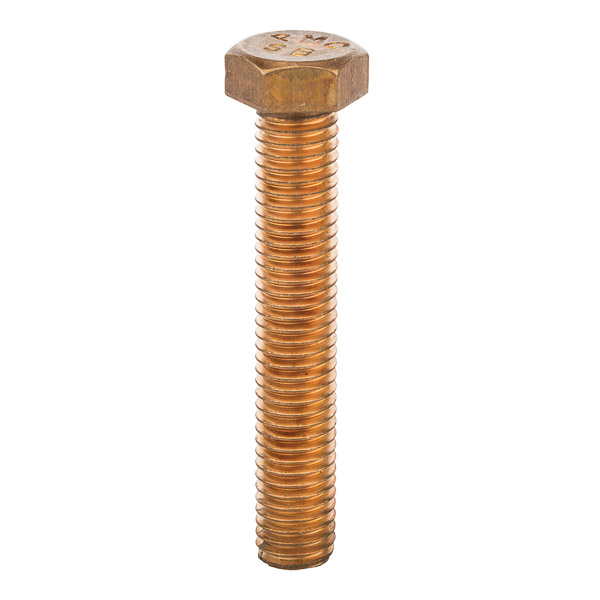

1/2" x 3 1/2" Bronze Tap Bolt Corrosion resistance and physical strength combine to provide reliability.
