GL40048
SKU: GL40048
MPN: GL40048
Key specs
View all- Color
- Blue
- Material
- Copper
- Size
- L=3.08 - W=1.39 - OD=.950 - ID=.760
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

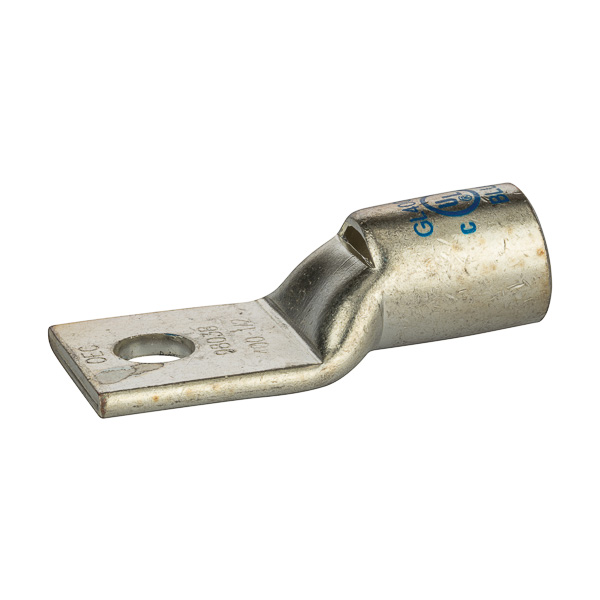

1 HoleShort Barrel Copper Compression Lug w/ PeepHole400MCM-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleShort Barrel Copper Compression Lug w/ PeepHole400MCM-1/2" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL40048 CU CMP Lug Short 400 MC
- Invoice description
- CU CMP Lug Short 400 MCM 1/2 Bolt Size
Specifications
- UPC
- 662381036179
- Color
- Blue
- Material
- Copper
- Size
- L=3.08 - W=1.39 - OD=.950 - ID=.760
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 400 MCM (STR)
- Color
- Blue
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 1/2 Mounting Hole
- Number Of Holes
- 1
- Size
- L=3.08 - W=1.39 - OD=.950 - ID=.760
- Standard
- UL486
- Stud Size
- 0.5 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
