GL438
SKU: GL438
MPN: GL438
Key specs
View all- Color
- Gray
- Material
- Copper
- Size
- L=1.50 - W=.560 - OD=.340 - ID=.250
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

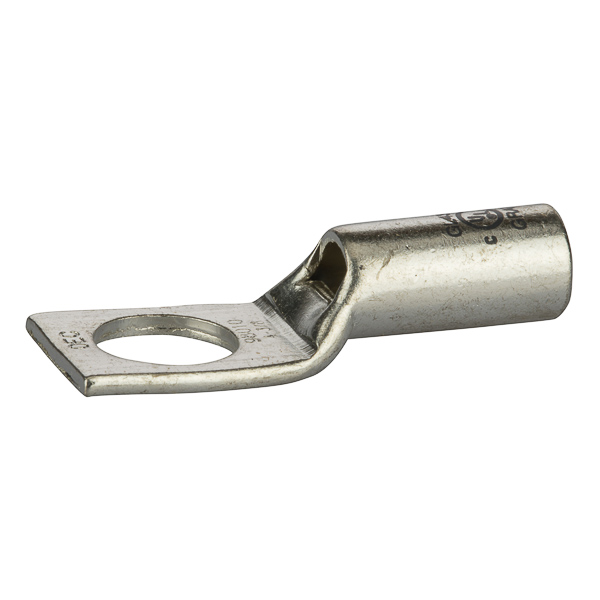

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL438 CU CMP Lug Short 4 AWG 3/
- Invoice description
- CU CMP Lug Short 4 AWG 3/8 Bolt Size
Specifications
- UPC
- 662381036049
- Color
- Gray
- Material
- Copper
- Size
- L=1.50 - W=.560 - OD=.340 - ID=.250
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- # 4 AWG (STR)
- Color
- Gray
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=1.50 - W=.560 - OD=.340 - ID=.250
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
