Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$101.87 / EA
Local stock: 0
Lead time:
over 7 working days

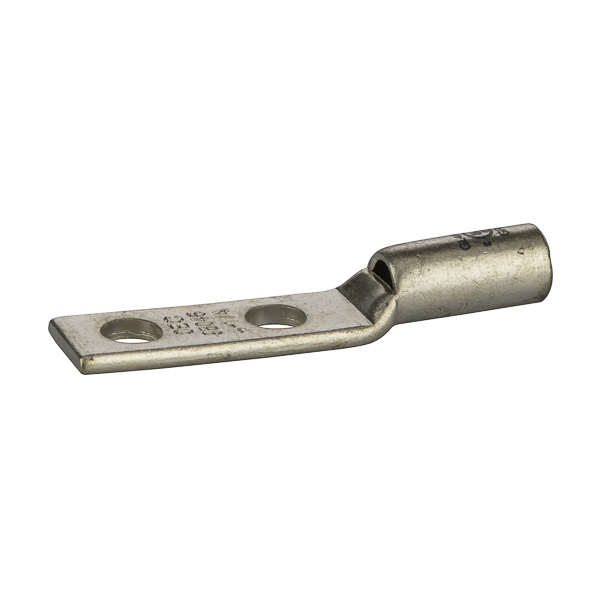

2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 1/4" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 1/4" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381338020
- Color:
- Gray
- Material:
- Copper
- Size:
- L=2.09 - W=.490 - OD=.340 - ID=.250
- Type:
- Short Barrel - Two Hole
- Voltage Rating:
- 600 V
- Cable Size:
- # 4 AWG (STR)
- Color:
- Gray
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 1/4 Mounting Holes
- Number Of Holes:
- 2
- Size:
- L=2.09 - W=.490 - OD=.340 - ID=.250
- Standard:
- UL486
- Stud Size:
- 0.25 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - Two Hole
- Voltage Rating:
- 600 V
