GL4N-38
SKU: GL4N-38
MPN: GL4N-38
Key specs
View all- Color
- Gray
- Material
- Copper
- Size
- L=2.68 - W=.490 - OD=.340 - ID=.250
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

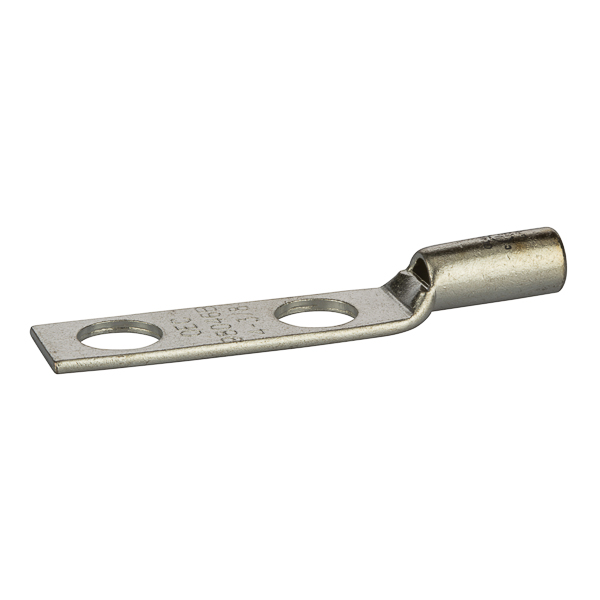

2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2 Hole Short Barrel Copper Compression Lug w/ Peep Hole 4 AWG - 3/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL4N-38 CU CMP Lug Short 4 AWG
- Invoice description
- CU CMP Lug Short 4 AWG 3/8 Bolt 1 Spac
Specifications
- UPC
- 662381338044
- Color
- Gray
- Material
- Copper
- Size
- L=2.68 - W=.490 - OD=.340 - ID=.250
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- # 4 AWG (STR)
- Color
- Gray
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Holes
- Number Of Holes
- 2
- Size
- L=2.68 - W=.490 - OD=.340 - ID=.250
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - Two Hole
- Voltage Rating
- 600 V
