GL50058
SKU: GL50058
MPN: GL50058
Key specs
View all- Color
- Brown
- Material
- Copper
- Size
- L=3.28 - W=1.54 - OD=1.06 - ID=.830
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

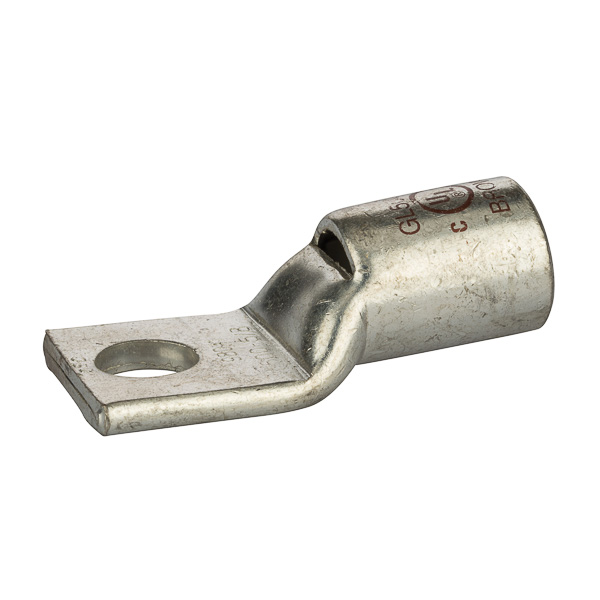

1 HoleShort Barrel Copper Compression Lug w/ PeepHole500MCM-5/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleShort Barrel Copper Compression Lug w/ PeepHole500MCM-5/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL50058 CU CMP Lug Short 500 MC
- Invoice description
- CU CMP Lug Short 500 MCM 5/8 Bolt Size
Specifications
- UPC
- 662381036353
- Color
- Brown
- Material
- Copper
- Size
- L=3.28 - W=1.54 - OD=1.06 - ID=.830
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 500 MCM (STR)
- Color
- Brown
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 5/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=3.28 - W=1.54 - OD=1.06 - ID=.830
- Standard
- UL486
- Stud Size
- 0.625 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
