Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$280.77 / EA
Local stock: 0
Lead time:
over 7 working days

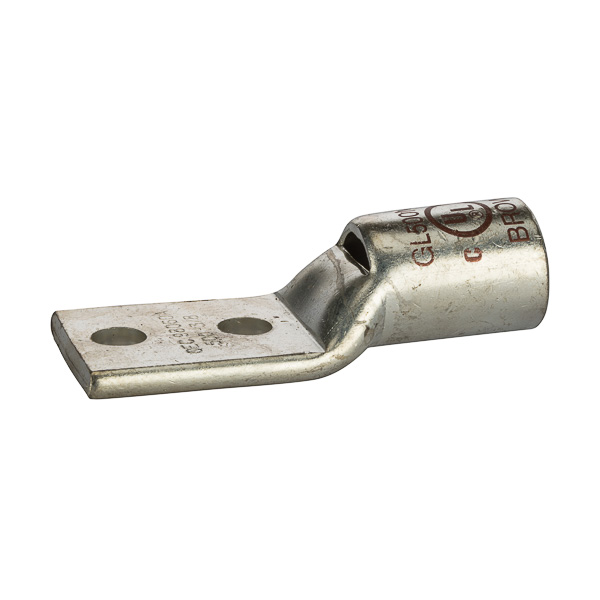

2HoleShort Barrel Copper Compression Lug w/ PeepHole500MCM-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2HoleShort Barrel Copper Compression Lug w/ PeepHole500MCM-3/8" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381338280
- Color:
- Brown
- Material:
- Copper
- Size:
- L=3.70 - W=1.54 - OD=1.06 - ID=.840
- Type:
- Short Barrel - Two Hole
- Voltage Rating:
- 600 V
- Cable Size:
- 500 MCM (STR)
- Color:
- Brown
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 3/8 Mounting Holes
- Number Of Holes:
- 2
- Size:
- L=3.70 - W=1.54 - OD=1.06 - ID=.840
- Standard:
- UL486
- Stud Size:
- 0.375 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - Two Hole
- Voltage Rating:
- 600 V
