Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
GL614
SKU: GL614
MPN: GL614
Key specs
View all- Color
- Blue
- Material
- Copper
- Size
- L=1.50 - W=.420 - OD=.300 - ID=.200
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

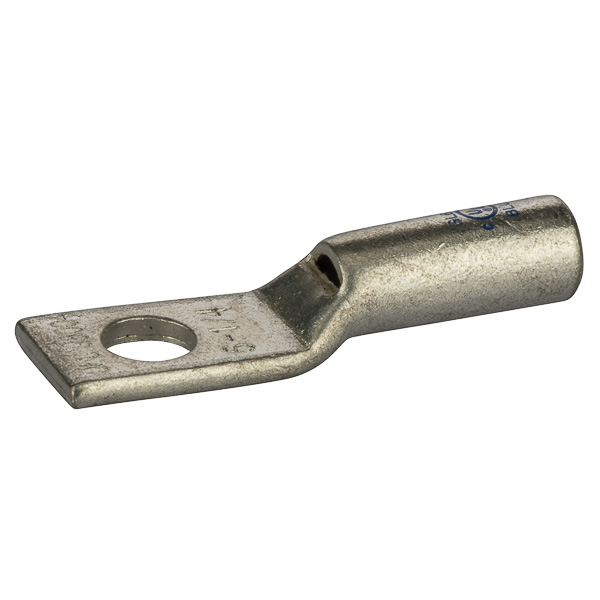

Short Barrel Copper Lug, one hole with peep hole, wire range of 6 AWG. Produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Marked with die index and color coded blue. cULus Listed for 35KV maximum when properly installed.
Short Barrel Copper Lug, one hole with peep hole, wire range of 6 AWG. Produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Marked with die index and color coded blue. cULus Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL614 CU CMP Lug Short 6 AWG 1/
- Invoice description
- CU CMP Lug Short 6 AWG 1/4 Bolt Size
Specifications
- UPC
- 662381036025
- Color
- Blue
- Material
- Copper
- Size
- L=1.50 - W=.420 - OD=.300 - ID=.200
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- # 6 AWG (STR)
- Color
- Blue
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 1/4 Mounting Hole
- Number Of Holes
- 1
- Size
- L=1.50 - W=.420 - OD=.300 - ID=.200
- Standard
- UL486
- Stud Size
- 0.25 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
