GL70058B
SKU: GL70058B
MPN: GL70058B
Key specs
View all- Color
- Pink
- Material
- Copper
- Size
- L=4.37 - W=1.90 - OD=1.31 - ID=1.03
- Type
- Short Barrel - One Hole - Belled End
- Voltage Rating
- 600 V
Description
Product overview

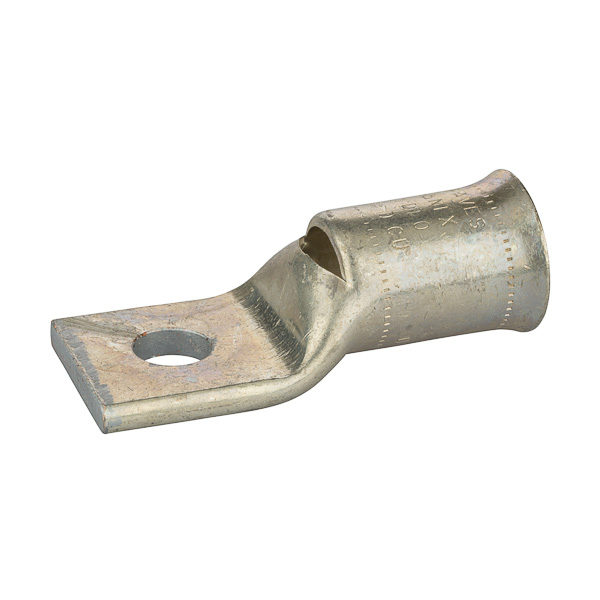

1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 700 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance....
1 Hole Short Barrel Copper Compression Lug for Flexible Copper Cable 700 MCM- 5/8" Bolt Compression lugs for flexible copper cables are connects that have a gentle, continuous flared end to ensure ease of cable insertion of flexible and extra flexible cables such as locomotive, welding, mining cable and more. The flared end also reduces pressure on the cable strands after installation and protects them from chafing and breakage as a result of cable movement. Tin-plated for corrosion resistance. Rated 600 volts for copper cables only. Single mounting hole.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL70058B CU CMP Lug Short 700 M
- Invoice description
- CU CMP Lug Short 700 MCM 5/8 Bolt-Bell
Specifications
- UPC
- 662381336538
- Color
- Pink
- Material
- Copper
- Size
- L=4.37 - W=1.90 - OD=1.31 - ID=1.03
- Type
- Short Barrel - One Hole - Belled End
- Voltage Rating
- 600 V
- Cable Size
- 700 MCM (STR)
- Color
- Pink
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 5/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=4.37 - W=1.90 - OD=1.31 - ID=1.03
- Standard
- UL486
- Stud Size
- 0.625 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole - Belled End
- Voltage Rating
- 600 V
