GL75058
SKU: GL75058
MPN: GL75058
Key specs
View all- Color
- Black
- Material
- Copper
- Size
- L=4.37 - W=1.90 - OD=1.31 - ID=1.03
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

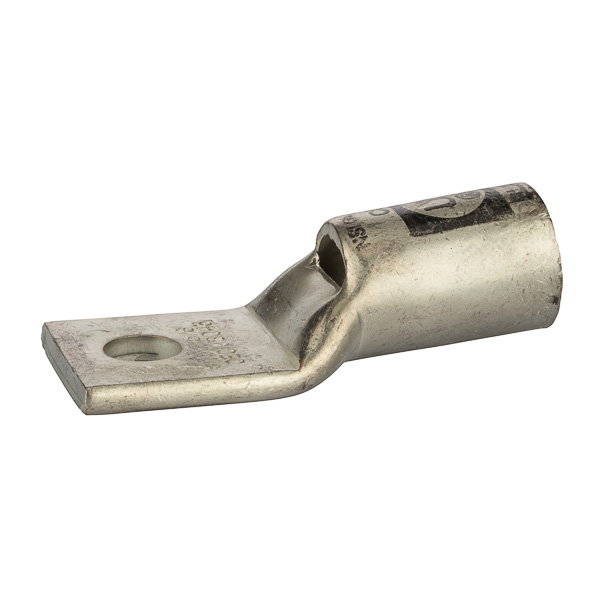

1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 750 MCM - 5/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 Hole Short Barrel Copper Compression Lug w/ Peep Hole 750 MCM - 5/8" Bolt Short Barrel Copper Compression Lugs with Peep Hole is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI GL75058 CU CMP Lug Short 750 MC
- Invoice description
- CU CMP Lug Short 750 MCM 5/8 Bolt Size
Specifications
- UPC
- 662381036308
- Color
- Black
- Material
- Copper
- Size
- L=4.37 - W=1.90 - OD=1.31 - ID=1.03
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 750 MCM (STR)
- Color
- Black
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 5/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=4.37 - W=1.90 - OD=1.31 - ID=1.03
- Standard
- UL486
- Stud Size
- 0.625 in
- Sub Brand
- Copper Compression
- Type
- Short Barrel - One Hole
- Voltage Rating
- 600 V
