$23.83 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

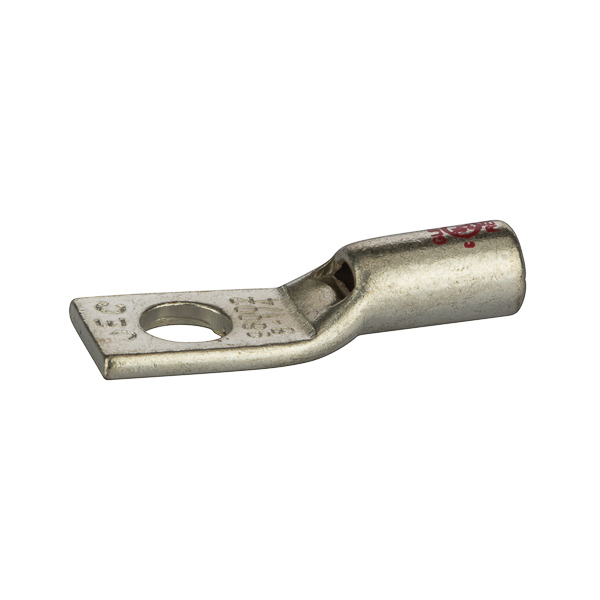

1 HoleShort Barrel Copper Compression Lug w/ PeepHole8 AWG-1/4" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleShort Barrel Copper Compression Lug w/ PeepHole8 AWG-1/4" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381036018
- Color:
- Red
- Material:
- Copper
- Size:
- L=1.20 - W=.420 - OD=.270 - ID=.170
- Type:
- Short Barrel - One Hole
- Voltage Rating:
- 600 V
- Cable Size:
- # 8 AWG (STR)
- Color:
- Red
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 1/4 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=1.20 - W=.420 - OD=.270 - ID=.170
- Standard:
- UL486
- Stud Size:
- 0.25 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - One Hole
- Voltage Rating:
- 600 V
