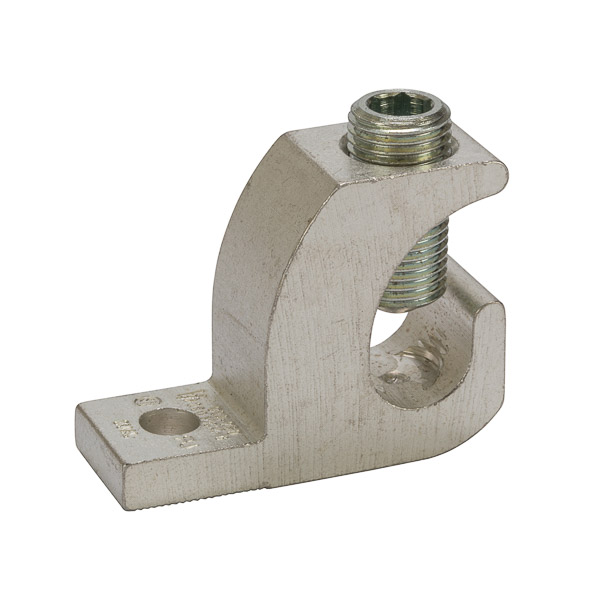

Lay In Connector 250 MCM - 6 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

GLA-250

Manufacturer
Nsi Industries

$96.28 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

Lay In Connector 250 MCM - 6 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

Lay In Connector 250 MCM - 6 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.

150

UPC
662381001931
Color:
Silver
Material:
Aluminum
Number Of Poles:
1
Size:
L=2.20 - H=1.70 - W=.800 IN
Type:
Aluminum Lay-In Lug
Voltage Rating:
600 V
Color:
Silver
Environmental Conditions:
90 C
Finish:
Aluminum
Material:
Aluminum
Number Of Conductors:
1
Number Of Poles:
1
Size:
L=2.20 - H=1.70 - W=.800 IN
Standard:
cULus
Sub Brand:
Mechanical Connector
Temperature Rating:
90 C
Type:
Aluminum Lay-In Lug
Voltage Rating:
600 V
Wire Size:
250 MCM-6 AWG
Wire Type:
AL/CU
