Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$28.98 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

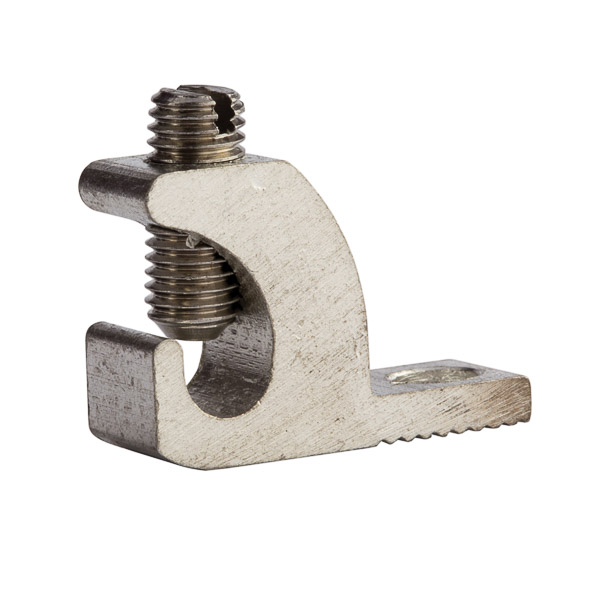

Lay In Connector 4 - 14 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.
Lay In Connector 4 - 14 AWG Lay-in connectors offer the ultimate in flexibility. Excellent for grounding and continuous loop applications. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C.
150
- UPC
- 662381001900
- Color:
- Silver
- Material:
- Aluminum
- Number Of Poles:
- 1
- Size:
- L=1.07 - H=.750 - W=.380 IN
- Type:
- Aluminum Lay-In Lug
- Voltage Rating:
- 600 V
- Color:
- Silver
- Environmental Conditions:
- 90 C
- Finish:
- Aluminum
- Material:
- Aluminum
- Number Of Conductors:
- 1
- Number Of Poles:
- 1
- Size:
- L=1.07 - H=.750 - W=.380 IN
- Standard:
- cULus
- Sub Brand:
- Mechanical Connector
- Temperature Rating:
- 90 C
- Type:
- Aluminum Lay-In Lug
- Voltage Rating:
- 600 V
- Wire Size:
- 4-14 AWG
- Wire Type:
- AL/CU
