GMA-1-R
SKU: GMA-1-R-EDF
MPN: GMA-1-R
Key specs
View all- Amperage Rating
- 1 A
- Material
- Nickel-plated brass endcapsGlass tube
- Size
- 5 mm Diameter X 20 mm Length
- Type
- Fast-acting fuse
- Voltage Rating
- 250 Vac, 32 Vdc (self certified)
Description
Product overview

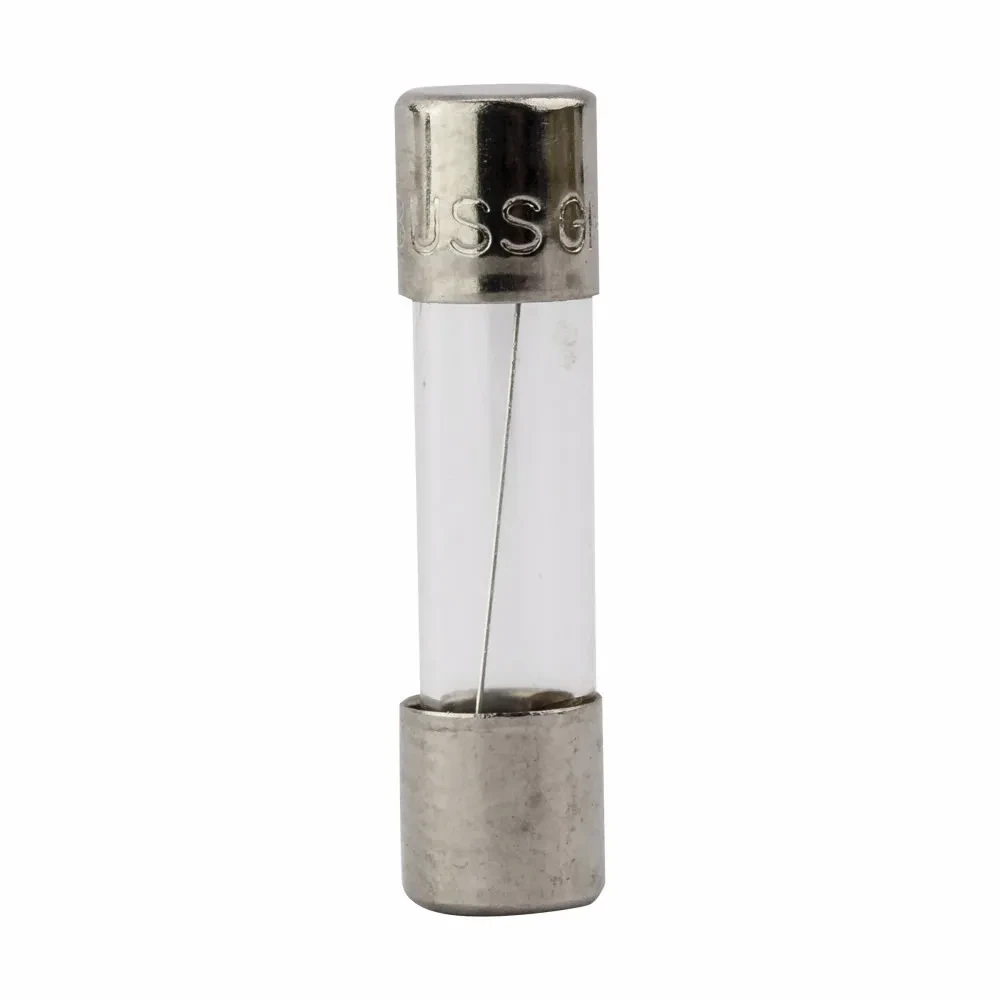

GMA 1A BUSS FUSE, GMA-1-R
GMA 1A BUSS FUSE, GMA-1-R
Manufacturer highlights
Fast-acting, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Ser...
Fast-acting, glass tube 5 mm x 20 mm ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available with axial leads for thru-hole installation Eaton's GMA fast-acting, glass tube 5mm x 20mm ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS GMA-1-R GMA 1A BUSS FUSE
- Invoice description
- GMA 1A BUSS FUSE
Specifications
- UPC
- 051712647830
- UNSPSC
- 39121607
- Country of Origin
- CN
- Amperage Rating
- 1 A
- Material
- Nickel-plated brass endcapsGlass tube
- Size
- 5 mm Diameter X 20 mm Length
- Type
- Fast-acting fuse
- Voltage Rating
- 250 Vac, 32 Vdc (self certified)
- Amperage Rating
- 1 A
- Connection
- Ferrule end x ferrule end
- Dimensions
- 0.7874 IN X 0.1969 IN X 0.1969 IN
- Interrupt Rating
- 35 AIC at 250 Vac10 kAIC at 125 Vac
- Material
- Nickel-plated brass endcapsGlass tube
- Response Time
- 60 min at 135%, 2 min at 200%
- Size
- 5 mm Diameter X 20 mm Length
- Standard
- RoHS Compliant,CE Marked
- Sub Brand
- Bussmann Series
- Type
- Fast-acting fuse
- Voltage Rating
- 250 Vac, 32 Vdc (self certified)
Videos & documents
Documents
