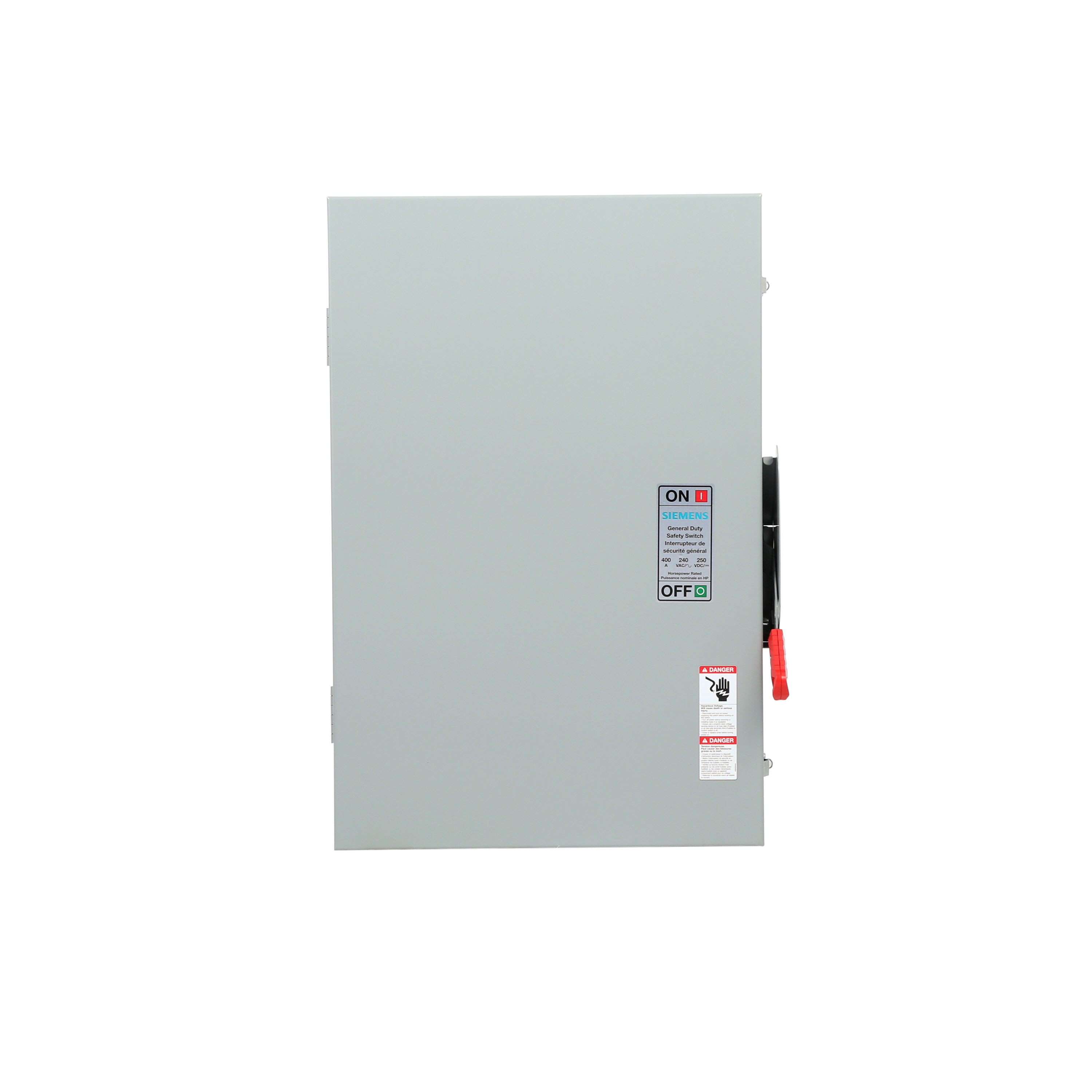

Siemens Industry, Inc. GNF325A Safety Switch product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Owners Manual

GNF325A

SKU: GNF325A

MPN: GNF325A

Purchase options

$1,067.42 / EA

manufacturer discounts
learn about discounts

$957.00 for $1,500.00+
$920.19 for $2,500.00+
$883.38 for $3,500.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Amperage Rating: 400 A
Material: Steel
Number Of Poles: 3
Type: GENERALDUTYSWITCH

Description

Product overview

Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole or 3-Pole Non-Fused in a type 1 enclosure (indoor). Rated 240VAC (400A). Horse power 1-PH 2-W (15), 3-PH 3-W (125), 250VDC (50). Special features service entrance labeled suitable for 3-PH motor loads.

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A GNF325A GDSS NF 3P3W 240V 400A
Invoice description: GDSS NF 3P3W 240V 400A N1 SERIES A

Specifications

UPC: 887621872670

UNSPSC: 39122205

Country of Origin: MX

Amperage Rating: 400 A

Material: Steel

Number Of Poles: 3

Type: GENERALDUTYSWITCH

Actuator: SINGLETHROW

Ambient temperature / during operation / maximum: 85 °C

Amperage Rating: 400 A

Connection: MECHANICALLUGS

Enclosure: NEMA1

Frequency Rating: TRUE

Material: Steel

Mounting: SURFACE

Number Of Poles: 3

Operating Cycles: 6000

Operating Temperature: -29 ?C

Standard: UL98

Sub Brand: VBII

Type: GENERALDUTYSWITCH
