HBL15FGN

SKU: HBL15FGN

MPN: HBL15FGN

Purchase options

$33.04 / EA

manufacturer discounts
learn about discounts

$29.74 for $300.00+
$28.32 for $500.00+
$27.14 for $1,000.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Amperage Rating: 150 A
Color: Green
Material: Brass/Non-Metallic
Number Of Poles: 1
Size: Standard
Type: Plugs

Description

Product overview

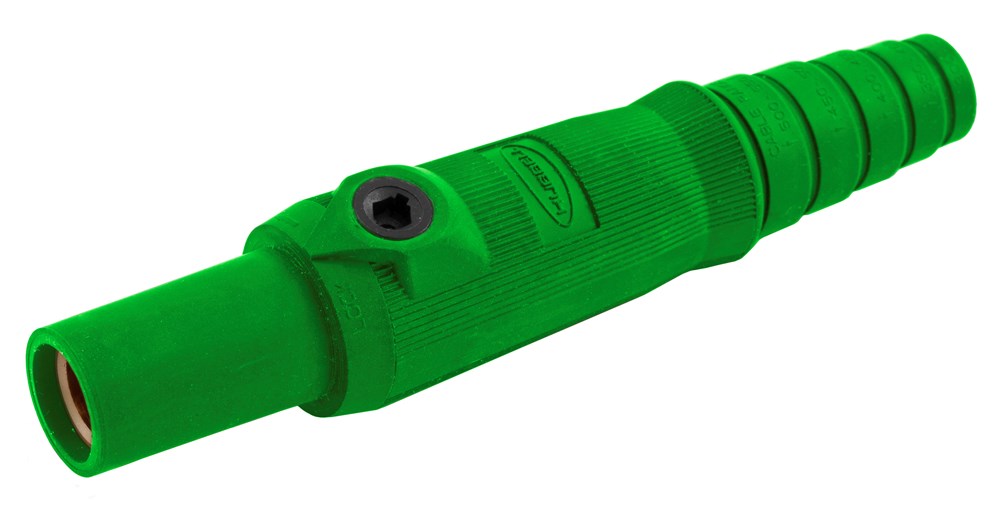

Hubbell Wiring Device Kellems, Single Pole Products, Female Plug, 150Amp Series, Green

Manufacturer highlights

Additional manufacturer notes

Short name: BRYANT
Feed description: BRYANT HBL15FGN SINGLE POLE SER 15
Invoice description: SINGLE POLE SER 15 FEM PLUG, 150A, GN

Specifications

UPC: 783585458410

UNSPSC: 39121421

Country of Origin: US

Amperage Rating: 150 A

Color: Green

Material: Brass/Non-Metallic

Number Of Poles: 1

Size: Standard

Type: Plugs

Voltage Rating: 600 AC or 250 DC Max V

Amperage Rating: 150 A

Brand ID: WIRING DEVICE-KELLEMS

Carton Quantity: 25

Catalog Number: HBL15FGN

Color: Green

Conductor Range: #8 AWG to #2 AWG SC/PPC Wire

Connection: Set Screw

Current / Amperage Rating: 150 A

Current Rating: 150 A

Description - Long: Single Pole Products, Female Plug, 150 Amp Series, Green

Description - Short: Single Pole Products, Female Plug, 150 Amp Series, Green

EU RoHS Indicator: No

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FEATURES - Bullets: Extra Long non-conductive inner sleeve;Turn and Lock Symbol aids in the mating of devices;Easily Identifiable Cable with cut off points for secure fit

Insulation: Insulated Body

Item Type: Female Plug

Material: Brass/Non-Metallic

Material - Mounting Hardware: Cord Mounted

Mounting: Cord Mounted

NEMA Rating: Non-NEMA

Number Of Conductors: 1 Conductor

Number Of Poles: 1

OEM Brand Name: Hubbell Wiring Device-Kellems

Performance: Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG

Product Name: HBL15FGN

Series: Series 15

Size: Standard

Standard: National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12

Sub Brand: Single Pin

Temperature Rating: Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.

Type: Plugs

UPC: 783585458410

Voltage Rating: 600 AC or 250 DC Max V

Voltage Rating Description: 600V AC/DC
