$33.04 / EA
manufacturer discounts
learn about discounts
- $29.74 for $300.00+
- $28.32 for $500.00+
- $27.14 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

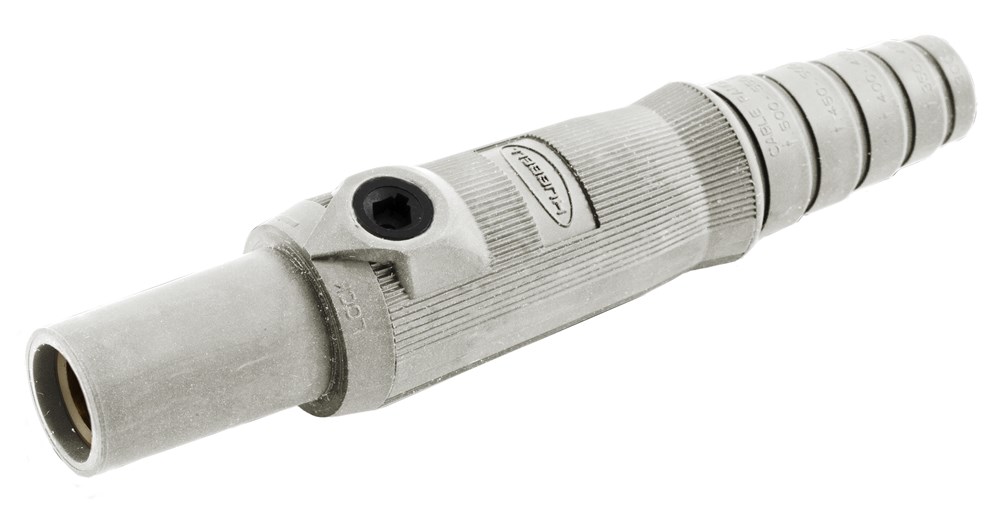

Hubbell Wiring Device Kellems, Single Pole Products, Female Plug, 150Amp Series, White
Hubbell Wiring Device Kellems, Single Pole Products, Female Plug, 150Amp Series, White
150
- UPC
- 783585458380
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating:
- 150 A
- Color:
- White
- Material:
- Brass/Non-Metallic
- Number Of Poles:
- 1
- Size:
- Standard
- Type:
- Plugs
- Voltage Rating:
- 600 AC or 250 DC Max V
- Amperage Rating:
- 150 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Carton Quantity:
- 25
- Catalog Number:
- HBL15FW
- Color:
- White
- Conductor Range:
- #8 AWG to #2 AWG SC/PPC Wire
- Connection:
- Set Screw
- Current / Amperage Rating:
- 150 A
- Current Rating:
- 150 A
- Description - Long:
- Single Pole Products, Female Plug, 150 Amp Series, White
- Description - Short:
- Single Pole Products, Female Plug, 150 Amp Series, White
- EU RoHS Indicator:
- No
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Extra Long non-conductive inner sleeve;Turn and Lock Symbol aids in the mating of devices;Easily Identifiable Cable with cut off points for secure fit
- Insulation:
- Insulated Body
- Item Type:
- Female Plug
- Material:
- Brass/Non-Metallic
- Material - Mounting Hardware:
- Cord Mounted
- Mounting:
- Cord Mounted
- NEMA Rating:
- Non-NEMA
- Number Of Conductors:
- 1 Conductor
- Number Of Poles:
- 1
- OEM Brand Name:
- Hubbell Wiring Device-Kellems
- Performance:
- Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG
- Product Name:
- HBL15FW
- Series:
- Series 15
- Size:
- Standard
- Standard:
- National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
- Sub Brand:
- Single Pin
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Plugs
- UPC:
- 783585458380
- Voltage Rating:
- 600 AC or 250 DC Max V
- Voltage Rating Description:
- 600V AC/DC
