$1.78 / EA
manufacturer discounts
learn about discounts
- $1.60 for $300.00+
- $1.52 for $500.00+
- $1.46 for $1,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

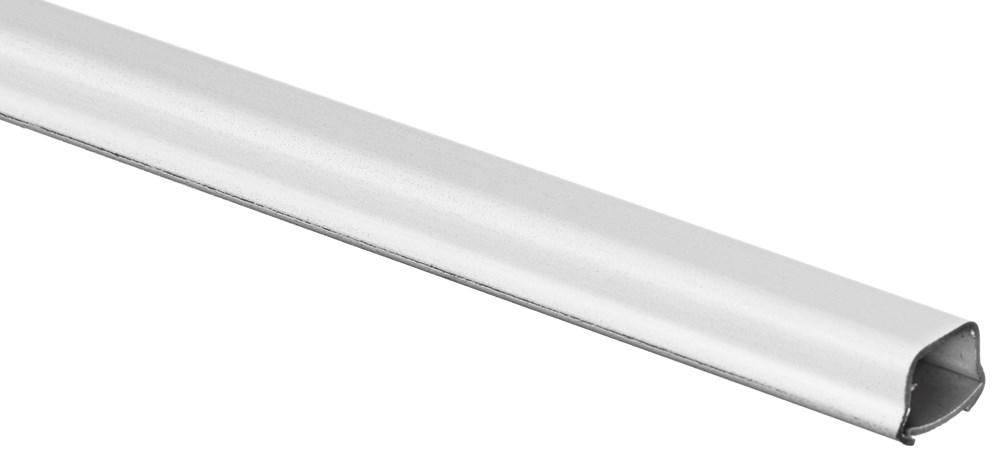

Hubbell Wiring Device Kellems, Metal Raceway, Single Channel, HBL500Series, 10', White
Hubbell Wiring Device Kellems, Metal Raceway, Single Channel, HBL500Series, 10', White
150
- UPC
- 783585145204
- UNSPSC
- 39131710
- Country of Origin
- US
- Material:
- Steel
- Type:
- Base and Cover
- Brand ID:
- WIRING DEVICE-KELLEMS
- Carton Quantity:
- 100
- Catalog Number:
- HBL50010W
- Construction:
- Roll Form
- Cover Type:
- Integral
- Description - Long:
- Metal Raceway, Single Channel, HBL500 Series, 10', White
- Description - Short:
- Metal Raceway, Single Channel, HBL500 Series, 10', White
- EU RoHS Indicator:
- Contact Manufacturer
- Enclosure:
- NEMA 1 Rating
- FEATURES - Bullets:
- Ideal for datacom and oversized neutral applications;Largest single channel low profile raceway available in its class;Available with 1 1/2 in. (38.10) Category 6 and 6A bend radius fittings
- Finish:
- White
- Height:
- 0.53 in
- Item Type:
- Dedicated HBL500 Series
- Knockouts:
- None
- Length:
- 10 ft
- Material:
- Steel
- Nominal Cross Section:
- .22 Square Inches
- Non Hazardous Location:
- Non Hazardous
- Product Name:
- HBL50010W
- Series:
- HBL500
- Standard:
- CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5
- Straight Section Length:
- 10' Raceway Sections
- Sub Brand:
- Metallic Raceway Products
- Type:
- Base and Cover
- UPC:
- 783585145204
- Width:
- 0.76 in
HBL4750CIV
$4.10 /ea
Hubbell Wiring Device Kellems, Metal Raceway, 5' Cover, HBL4750 Series,Ivory
| Attributed Data | Included |
|---|---|
| Brand ID | WIRING DEVICE-KELLEMS Yes |
| Carton Quantity | 50 Yes |
| Catalog Number | HBL4750CIV Yes |
| Construction | Roll Form Yes |
| Cover Type | Removable Yes |
| Description - Long | Metal Raceway, 5' Cover, HBL4750 Series, Ivory Yes |
| Description - Short | Metal Raceway, 5' Cover, HBL4750 Series, Ivory Yes |
| EU RoHS Indicator | Contact Manufacturer Yes |
| Enclosure | NEMA 1 Rating Yes |
| FEATURES - Bullets | By-Pass Divider opening accepts GFCI or surge devices;Flexible channel divider provides industry leading data capacity;Greater capacity offers more room for moves, adds and changes Yes |
| Finish | Ivory Yes |
| Item Type | HBL4750 Series Yes |
| Knockouts | None Yes |
| Material | Steel Yes |
| Nominal Cross Section | 7.20 Square Inches Yes |
| Non Hazardous Location | Non Hazardous Yes |
| Product Name | HBL4750CIV Yes |
| Series | HBL4750 Yes |
| Standard | CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5 Yes |
| Straight Section Length | 5' Covers Yes |
| Sub Brand | Metallic Raceway Products Yes |
| Type | Cover Only Yes |
| UPC | 783585216485 Yes |
44120-GSC3R
$303.63 /ea
4x120x4 Screw Cover Wireway Type 3R UL Listed Steel Knockouts ANSI 61 Gray Quad D Knockout for Lock
| Attributed Data | Included |
|---|---|
| Cover Type | Screw Cover Yes |
| Enclosure | Outdoor Enclosure Yes |
| Finish | Powder Coat Yes |
| Knockouts | True Yes |
| Material | Galvanized Steel Yes |
| NEMA Rating | Type 3R Yes |
| Nominal Cross Section | 4x4 Yes |
| Standard | UL Listed Yes |
| Straight Section Length | 120 Yes |
| Type | Wiring Trough Yes |
| Width | 4 Yes |
HBL4750B10IV
$6.83 /ea
Hubbell Wiring Device Kellems, Metal Raceway, 10' Base, HBL4750 Series,Ivory
| Attributed Data | Included |
|---|---|
| Brand ID | WIRING DEVICE-KELLEMS Yes |
| Carton Quantity | 50 Yes |
| Catalog Number | HBL4750B10IV Yes |
| Construction | Roll Form Yes |
| Cover Type | Removable Yes |
| Description - Long | Metal Raceway, 10' Base, HBL4750 Series, Ivory Yes |
| Description - Short | Metal Raceway, 10' Base, HBL4750 Series, Ivory Yes |
| EU RoHS Indicator | Contact Manufacturer Yes |
| Enclosure | NEMA 1 Rating Yes |
| FEATURES - Bullets | By-Pass Divider opening accepts GFCI or surge devices;Flexible channel divider provides industry leading data capacity;Greater capacity offers more room for moves, adds and changes Yes |
| Finish | Ivory Yes |
| Item Type | HBL4750 Series Yes |
| Knockouts | None Yes |
| Material | Steel Yes |
| Nominal Cross Section | 7.20 Square Inches Yes |
| Non Hazardous Location | Non Hazardous Yes |
| Product Name | HBL4750B10IV Yes |
| Series | HBL4750 Yes |
| Standard | CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5 Yes |
| Straight Section Length | 10' Single Channel Base Yes |
| Sub Brand | Metallic Raceway Products Yes |
| Type | Base Only Yes |
| UPC | 783585216379 Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
HBL4750CIV
Hubbell Wiring Device Kellems, Metal Raceway, 5' Cover, HBL4750 Series,Ivory
$4.10 / FT
|
44120-GSC3R
4x120x4 Screw Cover Wireway Type 3R UL Listed Steel Knockouts ANSI 61 Gray Quad D Knockout for Lock
$303.63 / EA
|
HBL4750B10IV
Hubbell Wiring Device Kellems, Metal Raceway, 10' Base, HBL4750 Series,Ivory
$6.83 / FT
|
|
| Attributed Data | |||
| Brand ID | WIRING DEVICE-KELLEMS WIRING DEVICE-KELLEMS | ||
| Carton Quantity | 50 50 | ||
| Catalog Number | HBL4750B10IV HBL4750B10IV | HBL4750CIV HBL4750CIV | |
| Construction | Roll Form Roll Form | ||
| Cover Type | Removable Removable | Screw Cover Screw Cover | |
| Description - Long | Metal Raceway, 5' Cover, HBL4750 Series, Ivory Metal Raceway, 5' Cover, HBL4750 Series, Ivory | Metal Raceway, 10' Base, HBL4750 Series, Ivory Metal Raceway, 10' Base, HBL4750 Series, Ivory | |
| Description - Short | Metal Raceway, 5' Cover, HBL4750 Series, Ivory Metal Raceway, 5' Cover, HBL4750 Series, Ivory | Metal Raceway, 10' Base, HBL4750 Series, Ivory Metal Raceway, 10' Base, HBL4750 Series, Ivory | |
| EU RoHS Indicator | Contact Manufacturer Contact Manufacturer | ||
| Enclosure | NEMA 1 Rating NEMA 1 Rating | Outdoor Enclosure Outdoor Enclosure | |
| FEATURES - Bullets | By-Pass Divider opening accepts GFCI or surge devices;Flexible channel divider provides industry leading data capacity;Greater capacity offers more room for moves, adds and changes By-Pass Divider opening accepts GFCI or surge devices;Flexible channel divider provides industry leading data capacity;Greater capacity offers more room for moves, adds and changes | ||
| Finish | Ivory Ivory | Powder Coat Powder Coat | |
| Height | 1.62 in 1.62 in | 4 in 4 in | |
| Item Type | HBL4750 Series HBL4750 Series | ||
| Knockouts | None None | True True | |
| Length | 5 ft 5 ft | 10 ft 10 ft | 120 in 120 in |
| Material | Galvanized Steel Galvanized Steel | Steel Steel | |
| NEMA Rating | Type 3R Type 3R | ||
| Nominal Cross Section | 4x4 4x4 | 7.20 Square Inches 7.20 Square Inches | |
| Non Hazardous Location | Non Hazardous Non Hazardous | ||
| Product Name | HBL4750B10IV HBL4750B10IV | HBL4750CIV HBL4750CIV | |
| Series | HBL4750 HBL4750 | ||
| Standard | CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5 CSA Standard C22.2 no. 62;E253976 /E253830 /E253833;UL Standard UL 5 | UL Listed UL Listed | |
| Straight Section Length | 5' Covers 5' Covers | 10' Single Channel Base 10' Single Channel Base | 120 120 |
| Sub Brand | Metallic Raceway Products Metallic Raceway Products | ||
| Type | Base Only Base Only | Cover Only Cover Only | Wiring Trough Wiring Trough |
| UPC | 783585216379 783585216379 | 783585216485 783585216485 | |
| Width | 4 4 | 4.76 in 4.76 in | |
