$44.10 / EA
manufacturer discounts
learn about discounts
- $39.69 for $300.00+
- $37.80 for $500.00+
- $36.23 for $1,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

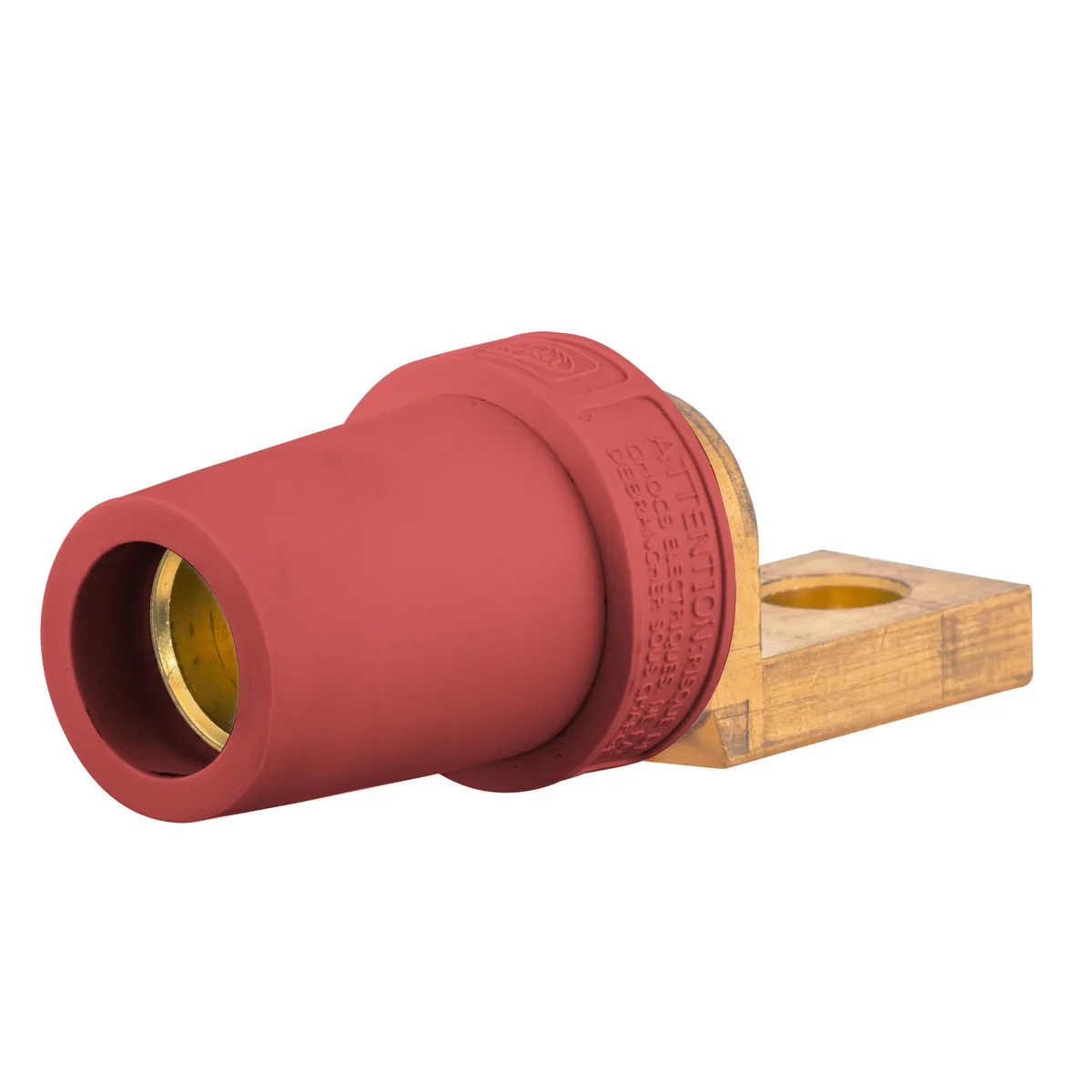

Hubbell Wiring Device Kellems, Single Pole Products, 300/400A Series,Female, Offset Stud Type, Red
Hubbell Wiring Device Kellems, Single Pole Products, 300/400A Series,Female, Offset Stud Type, Red
150
- UPC
- 783585555621
- UNSPSC
- 39121407
- Country of Origin
- CN
- Amperage Rating:
- 400 A
- Color:
- Red
- Material:
- Composite
- Size:
- Standard
- Type:
- Terminals
- Voltage Rating:
- 250//600 VDC//VAC
- Wattage:
- 240,000 W
- Amperage Rating:
- 400 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Carton Quantity:
- 25
- Catalog Number:
- HBLFOSR
- Color:
- Red
- Connection:
- Terminal Screws
- Current / Amperage Rating:
- 400 A
- Description - Long:
- Single Pole Products, 300/400A Series,Female, Offset Stud Type, Red
- Description - Short:
- Single Pole Products, 300/400A Series,Female, Offset Stud Type, Red
- EU RoHS Indicator:
- Contact Manufacturer
- FV_Current / Amperage Rating:
- 400 A
- FV_Voltage Rating Description:
- 600V AC/DC
- Material:
- Composite
- Mounting:
- Mounts to Cable
- Number Of Terminals:
- 1
- Product Name:
- HBLFOSR
- Series:
- Series 16
- Size:
- Standard
- Standard:
- UL/CSA
- Sub Brand:
- Single Pole Devices
- Type:
- Terminals
- UPC:
- 783585555621
- Voltage Rating:
- 250//600 VDC//VAC
- Voltage Rating Description:
- 600V AC/DC
- Wattage:
- 240,000 W
- Wire Size:
- Max #4/0 SC/PPC
22022
$5.28 /ea
Terminal Strips 2 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.Terminal Strips 2 Pole features include: Nylon insulated terminal strips are popular to alternative splicing High density circuitry can be attained to conserve space Rated: 30A UL 300VAC CSA 600VAC .55 Center Spacing Nylon Insulation Withstands Voltage: AC 2000V/min Insulation Resistance: 1000M or More at DC500V Using Temperature Range: -40deg;F to 248deg;F (-40deg;C to 120deg;C) Screw Torque Value: 18 Kg-cm Wire Range Awg: 12-22 Str Insulator Body: Plastic Nylon 66 (UL 94V-0) Brass Tin Plated Terminals 0.8t Terminal Screws: M4 Nickel Plated Brass cURus/CSA Listed Dimension Measurements = Inches (Bulk) Order Qty of 1 = 1 Piece Below is more info on our Terminal Strips 2 Pole
| Attributed Data | Included |
|---|---|
| Length | 2.05” Yes |
| MAXIMUM VOLTAGE | 300 Volts Yes |
| Material | Brass Yes |
| Poles | 2 Yes |
| TEMPERATURE RATING | -40oF - 248 oF Yes |
| Terminal Type | Strip Yes |
22023
$6.25 /ea
Terminal Strips 3 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.Terminal Strips 3 Pole features include: Nylon insulated terminal strips are popular to alternative splicing High density circuitry can be attained to conserve space Rated: 30A UL 300VAC CSA 600VAC .55 Center Spacing Nylon Insulation Withstands Voltage: AC 2000V/min Insulation Resistance: 1000M or More at DC500V Using Temperature Range: -40deg;F to 248deg;F (-40deg;C to 120deg;C) Screw Torque Value: 18 Kg-cm Wire Range Awg: 12-22 Str Insulator Body: Plastic Nylon 66 (UL 94V-0) Brass Tin Plated Terminals 0.8t Terminal Screws: M4 Nickel Plated Brass cURus/CSA Listed Dimension Measurements = Inches (Bulk) Order Qty of 1 = 1 PieceBelow is more info on our Terminal Strips 3 Pole
| Attributed Data | Included |
|---|---|
| Length | 2.60” Yes |
| MAXIMUM VOLTAGE | 300 Volts Yes |
| Material | Brass Yes |
| Poles | 3 Yes |
| TEMPERATURE RATING | -40oF - 248 oF Yes |
| Terminal Type | Strip Yes |
22024
$6.93 /ea
Terminal Strips 4 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.Terminal Strips 4 Pole features include: Nylon insulated terminal strips are popular to alternative splicing High density circuitry can be attained to conserve space Rated: 30A UL 300VAC CSA 600VAC .55 Center Spacing Nylon Insulation Withstands Voltage: AC 2000V/min Insulation Resistance: 1000M or More at DC500V Using Temperature Range: -40deg;F to 248deg;F (-40deg;C to 120deg;C) Screw Torque Value: 18 Kg-cm Wire Range Awg: 12-22 Str Insulator Body: Plastic Nylon 66 (UL 94V-0) Brass Tin Plated Terminals 0.8t Terminal Screws: M4 Nickel Plated Brass cURus/CSA Listed Dimension Measurements = Inches (Bulk) Order Qty of 1 = 1 Piece Below is more info on our Terminal Strips 4 Pole
| Attributed Data | Included |
|---|---|
| Length | 3.15” Yes |
| MAXIMUM VOLTAGE | 300 Volts Yes |
| Material | Brass Yes |
| Poles | 4 Yes |
| TEMPERATURE RATING | -40oF - 248 oF Yes |
| Terminal Type | Strip Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
22022
Terminal Strips 2 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.Terminal Strips 2 Pole features include: Nylon insulated terminal strips are popular to alternative splicing High density circuitry can be attained to conserve spa...
$5.28 / EA
*
* This is the minimum price that we are able to advertise. Call us at
(800) 462-7733
and we will offer a lower price.
|
22023
Terminal Strips 3 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.Terminal Strips 3 Pole features include: Nylon insulated terminal strips are popular to alternative splicing High density circuitry can be attained to conserve spa...
$6.25 / EA
*
* This is the minimum price that we are able to advertise. Call us at
(800) 462-7733
and we will offer a lower price.
|
22024
Terminal Strips 4 Pole - Nylon Insulated Terminal Strips avoid splicing and save time.Terminal Strips 4 Pole features include: Nylon insulated terminal strips are popular to alternative splicing High density circuitry can be attained to conserve spa...
$6.93 / EA
*
* This is the minimum price that we are able to advertise. Call us at
(800) 462-7733
and we will offer a lower price.
|
|
| Attributed Data | |||
| Length | 2.05” 2.05” | 2.60” 2.60” | 3.15” 3.15” |
| MAXIMUM VOLTAGE | 300 Volts 300 Volts | ||
| Material | Brass Brass | ||
| Poles | 2 2 | 3 3 | 4 4 |
| TEMPERATURE RATING | -40oF - 248 oF -40oF - 248 oF | ||
| Terminal Type | Strip Strip | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
