Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$12,399.27 / EA
manufacturer discounts
learn about discounts
- $11,116.59 for $1,500.00+
- $10,689.03 for $2,500.00+
- $10,261.46 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY. 110A 2-POLE (25KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY. 110A 2-POLE (25KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
150
- UPC
- 783643211698
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material:
- N/A
- Number Of Poles:
- 2
- Type:
- HFD6
- Voltage Rating:
- 600//250 VAC//VDC
- Actuator:
- Varying
- Auxiliary Contacts:
- N/A
- Connection:
- N/A
- Enclosure:
- Varying
- Environmental Conditions:
- N/A
- Frame:
- FD
- Frequency Rating:
- 50/60 Hz
- Height:
- 4 in
- Interrupt Rating:
- 25KAIC
- Length:
- 9.5
- Load Rating:
- N/A
- Material:
- N/A
- Number Of Poles:
- 2
- Operating Temperature:
- 40C
- Standard:
- HACR
- Sub Brand:
- Sentron
- Trip Range:
- 700-1200
- Trip Type:
- Thermal-Magnetic
- Type:
- HFD6
- Voltage Rating:
- 600//250 VAC//VDC
- Width:
- 4.5
Recently Viewed
-
HFD62B110
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BR...
See more details -
KA12-1
GREENLEE TEXTRON
Crimping Dies for 12 Ton Tools. 1 AWG Color Coded Gold for Aluminum lugs and splices.
See more details -
-
-

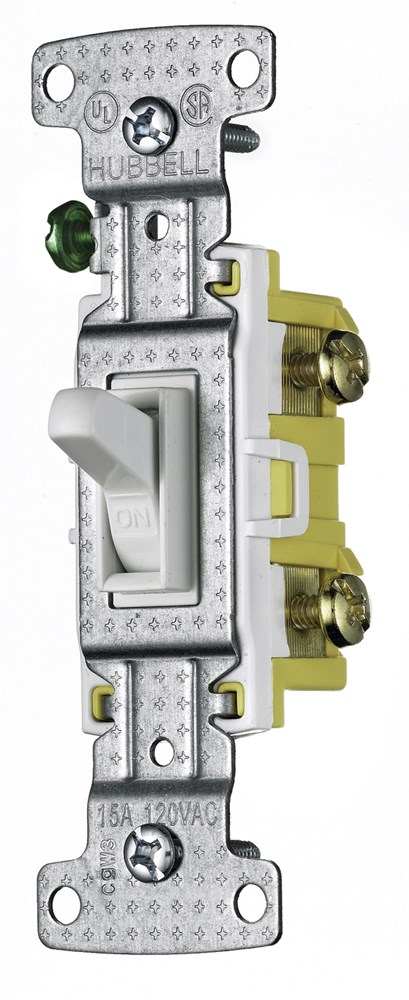

RS115ILW
