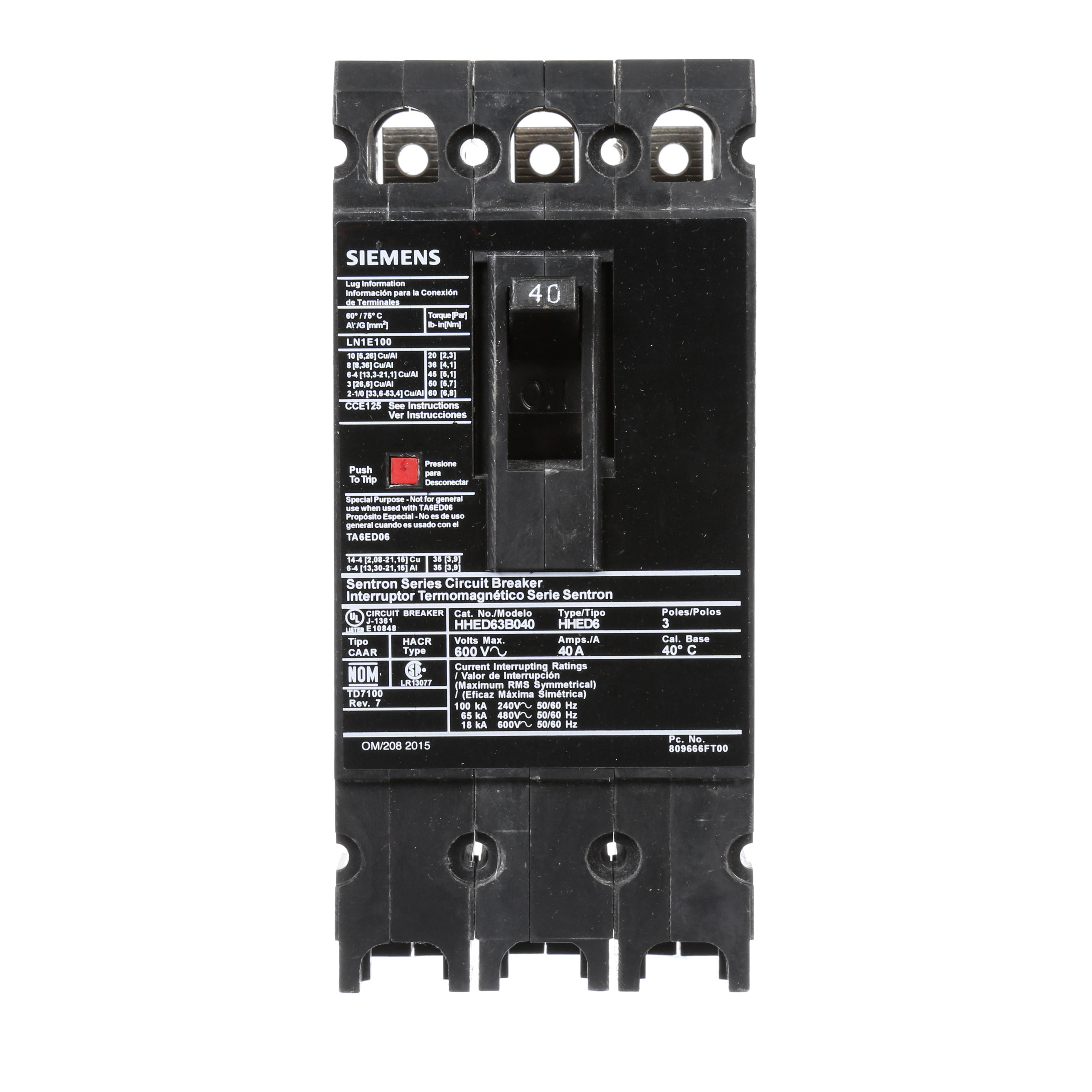

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH EXTRA HIGH BREAKING CAPACITY. 40A 3-POLE (18KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.5 x 3.92.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH EXTRA HIGH BREAKING CAPACITY. 40A 3-POLE (18KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.5 x 3.92.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

HHED63B040

$3,725.64 / EA

manufacturer discounts
learn about discounts

  • $3,340.23 for $1,500.00+
  • $3,211.76 for $2,500.00+
  • $3,083.29 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH EXTRA HIGH BREAKING CAPACITY. 40A 3-POLE (18KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.5 x 3.92.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH EXTRA HIGH BREAKING CAPACITY. 40A 3-POLE (18KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (LN1E100) WIRE RANGE 10 - 1/0AWG (CU/AL). DIMENSIONS (W x H x D) IN 3.00 x 6.5 x 3.92.

150

UPC
783643308077
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
3
Type:
HHED6
Voltage Rating:
600 V
Actuator:
Varying
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
ED
Frequency Rating:
50/60 Hz
Height:
7 in
Interrupt Rating:
18KAIC
Length:
4.000
Load Rating:
N/A
Material:
N/A
Number Of Poles:
3
Operating Temperature:
40C
Standard:
HACR
Sub Brand:
Sentron
Trip Range:
N/A
Trip Type:
Thermal-Magnetic
Type:
HHED6
Voltage Rating:
600 V
Width:
6.000
