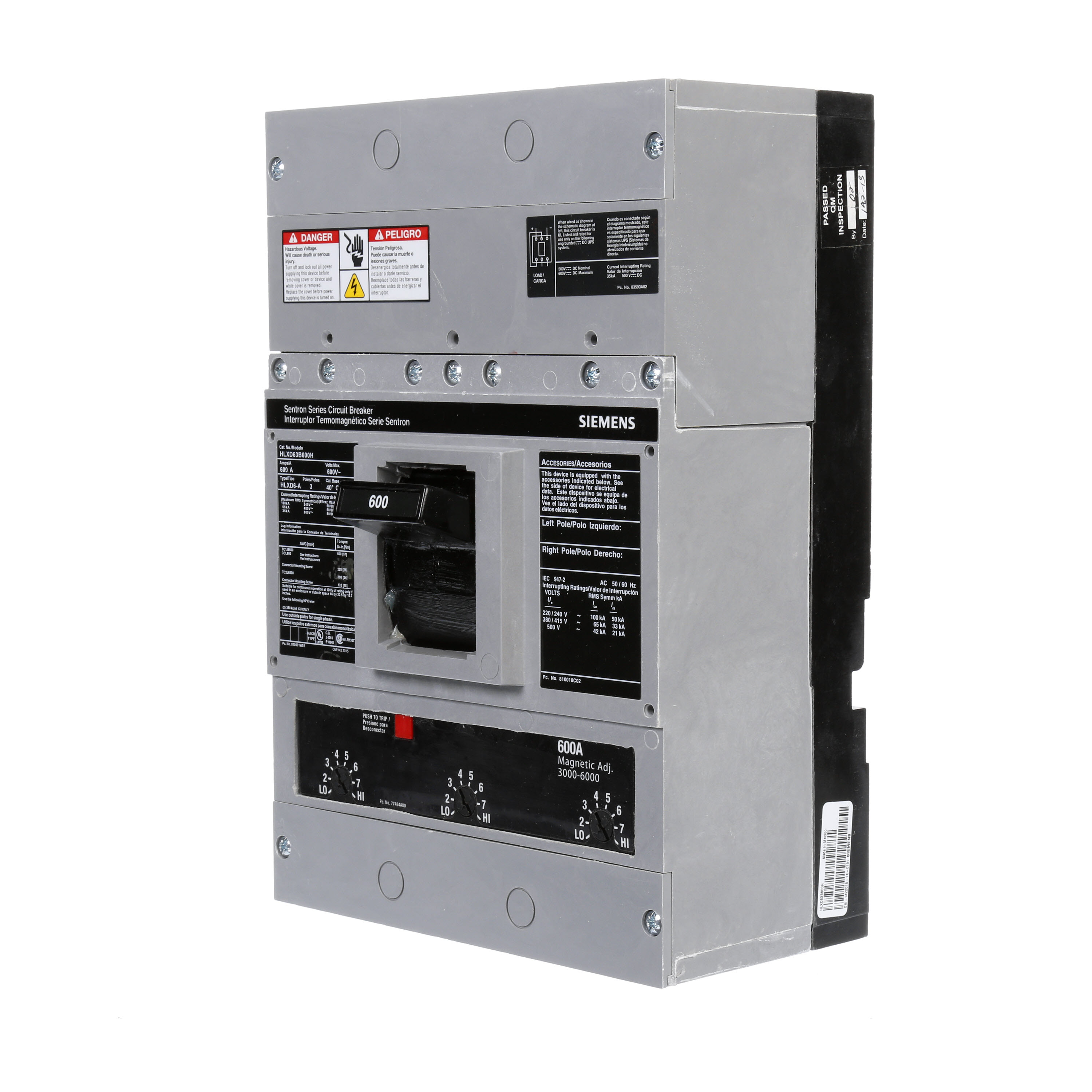

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 7.50 x 11.0 x 4.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 7.50 x 11.0 x 4.00.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

HLXD63B600H

$25,186.49 / EA

manufacturer discounts
learn about discounts

  • $22,580.99 for $1,500.00+
  • $21,712.49 for $2,500.00+
  • $20,843.99 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 7.50 x 11.0 x 4.00.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER LD FRAME WITH HIGH BREAKING CAPACITY. 600A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 7.50 x 11.0 x 4.00.

150

UPC
783643320178
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
3
Type:
HLXD6
Voltage Rating:
600//500 VAC//VDC
Actuator:
Varying
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
LD
Frequency Rating:
50/60 Hz
Height:
14.6 in
Interrupt Rating:
35KAIC
Length:
6.700
Load Rating:
N/A
Material:
N/A
Number Of Poles:
3
Operating Temperature:
40C
Standard:
UL/100% Rated
Sub Brand:
Sentron
Trip Range:
3000-6000
Trip Type:
Thermal-Magnetic
Type:
HLXD6
Voltage Rating:
600//500 VAC//VDC
Width:
8.700
