$361.86 / EA
manufacturer discounts
learn about discounts
- $336.01 for $1,500.00+
- $323.09 for $2,500.00+
- $310.16 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

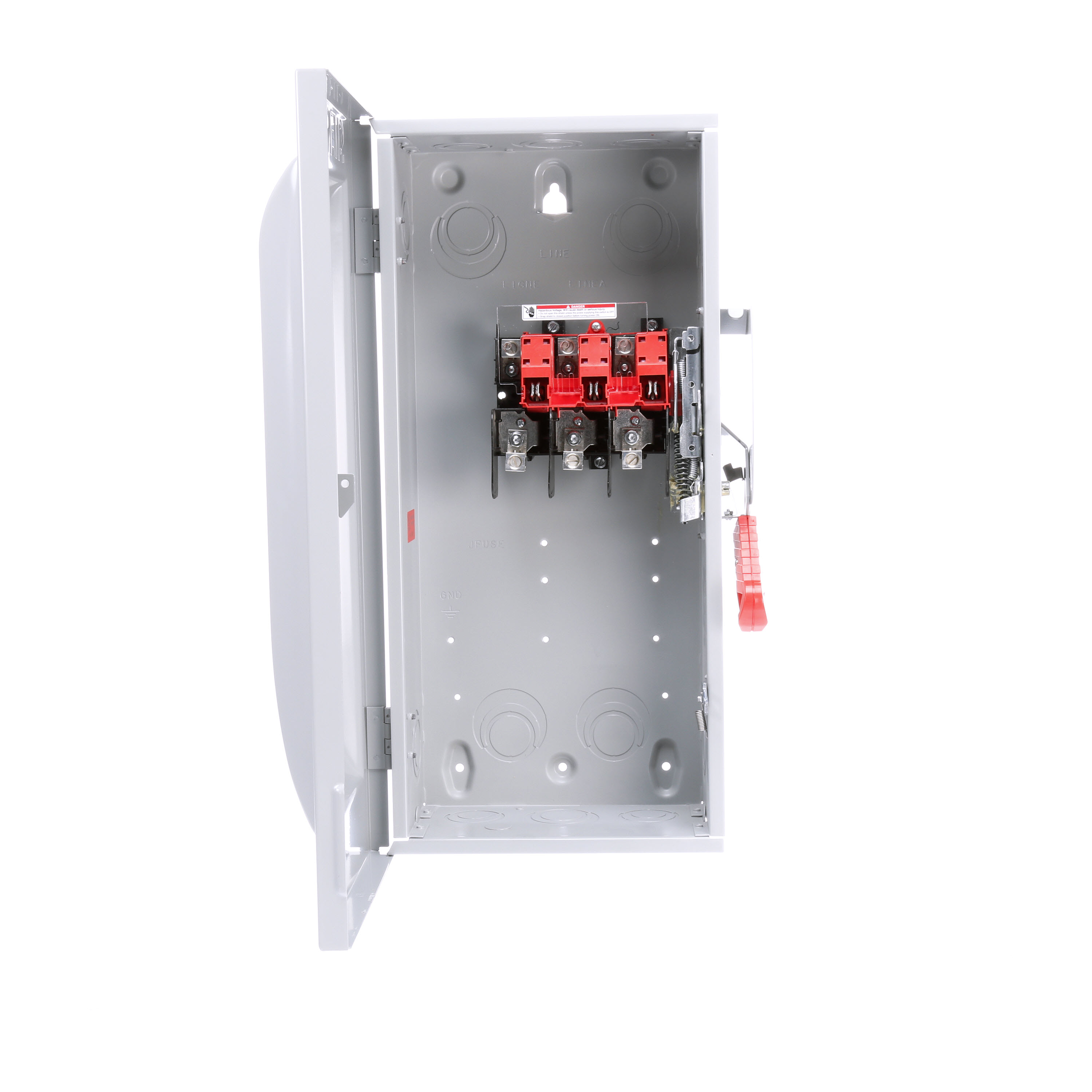

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 1 enclosure (indoor). Rated 600VAC (100A).
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole Non-Fused in a type 1 enclosure (indoor). Rated 600VAC (100A).
150
- UPC
- 783643151185
- UNSPSC
- 39122205
- Country of Origin
- MX
- Amperage Rating:
- 100 A
- Material:
- Steel
- Number Of Poles:
- 3
- Type:
- HEAVYDUTYSWITCH
- Actuator:
- SINGLETHROW
- Ambient temperature / during operation / maximum:
- 85 °C
- Amperage Rating:
- 100 A
- Connection:
- MECHANICALLUGS
- Enclosure:
- NEMA1
- Frequency Rating:
- TRUE
- Material:
- Steel
- Mounting:
- SURFACE
- Number Of Poles:
- 3
- Operating Cycles:
- 10k
- Operating Temperature:
- -29 ?C
- Standard:
- UL98
- Sub Brand:
- VBII
- Type:
- HEAVYDUTYSWITCH
B222-60NF
$41.46 /ea
60A 240V HVAC NEMA Type 3R Pull-Out Non-Fusible Disconnect
| Attributed Data | Included |
|---|---|
| Sub Brand | Bussmann series Yes |
B222-60NFNA
$42.77 /ea
60A 240V HVAC NEMA Type 3R Switch Non-Fusible Disconnect
| Attributed Data | Included |
|---|---|
| Sub Brand | Bussmann series Yes |
B221-30F
$41.46 /ea
30A 240V HVAC NEMA Type 3R Pull-Out Fusible Disconnect
| Attributed Data | Included |
|---|---|
| Sub Brand | Bussmann series Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
B222-60NF
60A 240V HVAC NEMA Type 3R Pull-Out Non-Fusible Disconnect
$41.46 / EA
|
B222-60NFNA
60A 240V HVAC NEMA Type 3R Switch Non-Fusible Disconnect
$42.77 / EA
|
B221-30F
30A 240V HVAC NEMA Type 3R Pull-Out Fusible Disconnect
$41.46 / EA
|
|
| Attributed Data | |||
| Actuator | Padlockable, 2-Position Pullout Handle Padlockable, 2-Position Pullout Handle | ||
| Amperage Rating | 30 A 30 A | 60 A 60 A | |
| Connection | 14 To 3 AWG (Copper/Aluminum) 14 To 3 AWG (Copper/Aluminum) | ||
| Enclosure | NEMA 3R NEMA 3R | ||
| Operating Temperature | 75 Deg C 75 Deg C | ||
| Size | 5-3/8 In Width X 2-7/8 In Depth X 8-3/4 In Height 5-3/8 In Width X 2-7/8 In Depth X 8-3/4 In Height | 5-3/8 In Width X 3-5/8 In Depth X 8-3/4 In Height 5-3/8 In Width X 3-5/8 In Depth X 8-3/4 In Height | |
| Standard | UL 1429, NEC UL 1429, NEC | ||
| Sub Brand | Bussmann series Bussmann series | ||
| Type | Fusible Fusible | Non Fusible Non Fusible | |
| Voltage Rating | 240 VAC 240 VAC | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
