Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$37.58 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

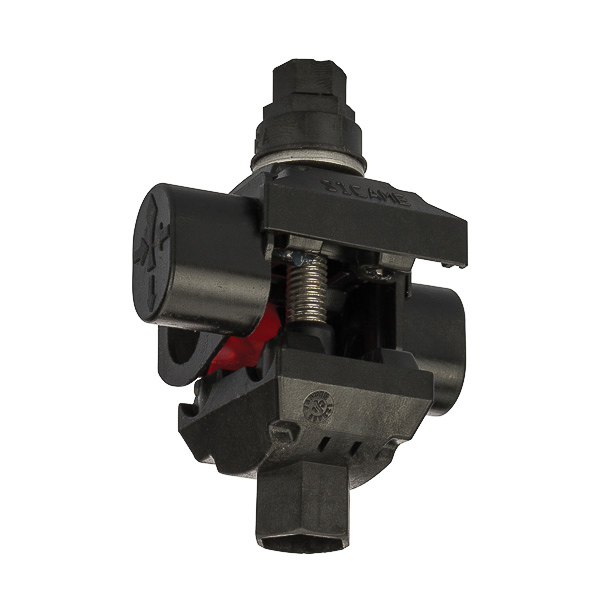

Insulation Piercing Connector 1/0 - 8 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight
Insulation Piercing Connector 1/0 - 8 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight
150
- UPC
- 662381082633
- Amperage Rating:
- 150-190 A
- Color:
- Black
- Material:
- Thermoplastic
- Size:
- L=2.20 - W=1.80 - H=3.10
- Type:
- Insulation Piercing Connectors
- Voltage Rating:
- 600 V
- Amperage Rating:
- 150-190 A
- Color:
- Black
- Conductor Size:
- 1/0-8 AWG (Main)
- Environmental Conditions:
- 90 C
- Finish:
- Thermoplastic
- Material:
- Thermoplastic
- Mounting:
- Clamp
- Size:
- L=2.20 - W=1.80 - H=3.10
- Standard:
- UL486B Listed
- Sub Brand:
- Easy-Tap
- Tap Size:
- 1/0-8 AWG
- Temperature Rating:
- 90 C
- Type:
- Insulation Piercing Connectors
- Voltage Rating:
- 600 V
