IPCS3535
SKU: IPCS3535
MPN: IPCS3535
Key specs
View all- Amperage Rating
- 445-570 A
- Color
- Black
- Material
- Thermoplastic
- Size
- L=3.90 - W=3.00 - H=4.50
- Type
- Insulation Piercing Connectors
- Voltage Rating
- 600 V
Description
Product overview

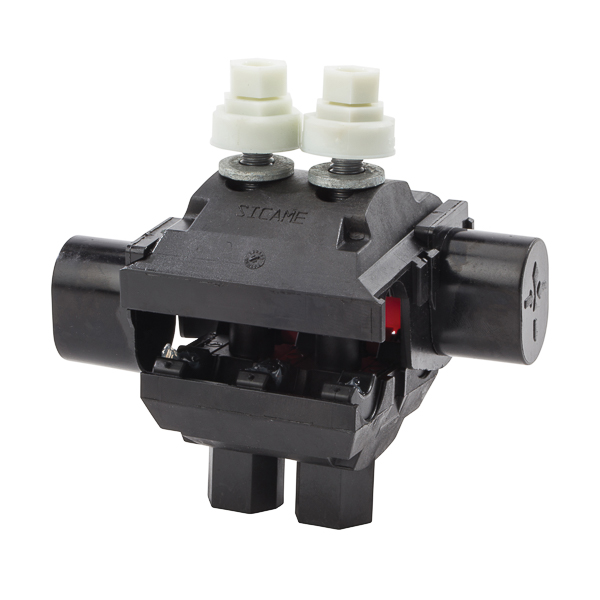

Insulation Piercing Connector 350 MCM - 1/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Insulation Piercing Connector 350 MCM - 1/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI IPCS3535 Insulation Piercing Co
- Invoice description
- Insulation Piercing Connector 350-350 MC
Specifications
- UPC
- 662381082671
- Amperage Rating
- 445-570 A
- Color
- Black
- Material
- Thermoplastic
- Size
- L=3.90 - W=3.00 - H=4.50
- Type
- Insulation Piercing Connectors
- Voltage Rating
- 600 V
- Amperage Rating
- 445-570 A
- Color
- Black
- Conductor Size
- 350 MCM-1/0 AWG (Main)
- Environmental Conditions
- 90 C
- Finish
- Thermoplastic
- Material
- Thermoplastic
- Mounting
- Clamp
- Size
- L=3.90 - W=3.00 - H=4.50
- Standard
- UL486B Listed
- Sub Brand
- Easy-Tap
- Tap Size
- 350 MCM-1/0 AWG
- Temperature Rating
- 90 C
- Type
- Insulation Piercing Connectors
- Voltage Rating
- 600 V
