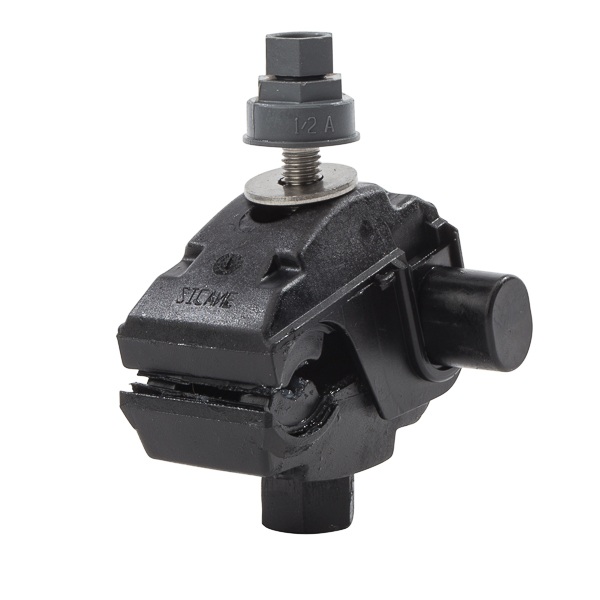

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

IPCS7501

Manufacturer
Nsi Industries

$64.59 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

Insulation Piercing Connector 750 MCM - 3/0 AWG Insulation piercing connectors are made for use with copper-copper, copper to aluminum and aluminum to aluminum applications. They are safe to use and are completely insulated, no need to strip wire. They can be installed on energized conductors with no contact at any point. No spacer required between connections. Exclusive "turbo spacer" keeps tap side open while main conductor is being tightened. Watertight and corrosion-free.

150

UPC
662381082619
Amperage Rating:
40 to 55 A
Color:
Black
Material:
Thermoplastic
Size:
L=2.60 - W=2.40 - H=3.70
Type:
Insulation Piercing Connectors
Voltage Rating:
600 V
Amperage Rating:
40 to 55 A
Color:
Black
Conductor Size:
750 MCM-3/0 AWG (Main)
Environmental Conditions:
90 C
Finish:
Thermoplastic
Material:
Thermoplastic
Mounting:
Clamp
Size:
L=2.60 - W=2.40 - H=3.70
Standard:
UL486B Listed
Sub Brand:
Easy-Tap
Tap Size:
10-14 AWG
Temperature Rating:
90 C
Type:
Insulation Piercing Connectors
Voltage Rating:
600 V
