Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
Videos & documents
Documents
IPL4-3
SKU: IPL4-3
MPN: IPL4-3
Key specs
View all- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=1.550 - W=1.188 - H=1.375 IN
- Type
- Single Sided Entry
- Voltage Rating
- 600 V
Description
Product overview

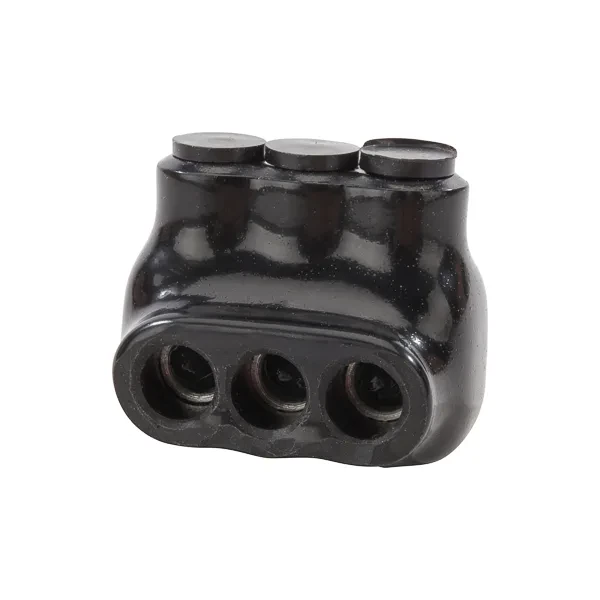

3 Wire Polaris4-14 AWG Insulated Multi-Cable Connector Blocks Polaris Insulated Multi-Cable Connectors are suitable for connecting three wires. Wire entry ports on one side only. Abrasion and chemical resistant. UV rated. Will not support combustion. Cold temperature rated to -45 degrees Celsius. Dual rated for use with copper and/or aluminum cables. 600 volts. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series).
3 Wire Polaris4-14 AWG Insulated Multi-Cable Connector Blocks Polaris Insulated Multi-Cable Connectors are suitable for connecting three wires. Wire entry ports on one side only. Abrasion and chemical resistant. UV rated. Will not support combustion. Cold temperature rated to -45 degrees Celsius. Dual rated for use with copper and/or aluminum cables. 600 volts. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series).
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI IPL4-3 4-14 AWG POLARIS INSULAT
- Invoice description
- POLARIS Ins Multi-Tap 4 3 Port SSE
Specifications
- UPC
- 662381910011
- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=1.550 - W=1.188 - H=1.375 IN
- Type
- Single Sided Entry
- Voltage Rating
- 600 V
- Color
- Black
- Environmental Conditions
- 90 C
- Finish
- Plastisol
- Material
- Plastisol
- Number Of Conductors
- 3
- Number Of Poles
- 1
- Size
- L=1.550 - W=1.188 - H=1.375 IN
- Standard
- cULus
- Sub Brand
- Polaris Black
- Temperature Rating
- 90 C
- Type
- Single Sided Entry
- Voltage Rating
- 600 V
- Wire Size
- 4-14 AWG
- Wire Type
- Class B & C
