IPLD250-3
SKU: IPLD250-3
MPN: IPLD250-3
Key specs
View all- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=2.930 - W=2.280 - H=2.180 IN
- Type
- Double Sided Entry
- Voltage Rating
- 600 V
Description
Product overview

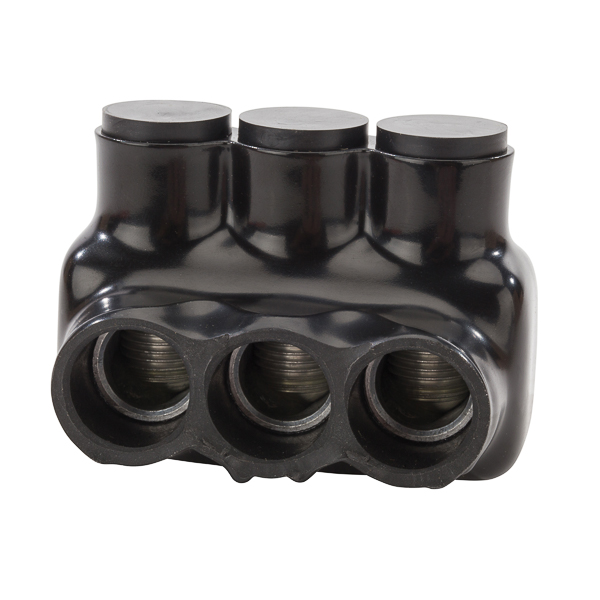

3 Wire Polaris 250 MCM - 6 AWG Insulated Multi-Cable Connector Block, Either Side Wire Entry Polaris Insul-Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. UV resistant. Will not support combustion. AL9CU. Cold tempe...
3 Wire Polaris 250 MCM - 6 AWG Insulated Multi-Cable Connector Block, Either Side Wire Entry Polaris Insul-Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. UV resistant. Will not support combustion. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI IPLD250-3 250 MCM - 6 AWG POLAR
- Invoice description
- POLARIS Ins Multi-Tap 250 3 Port DSE
Specifications
- UPC
- 662381923011
- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=2.930 - W=2.280 - H=2.180 IN
- Type
- Double Sided Entry
- Voltage Rating
- 600 V
- Color
- Black
- Environmental Conditions
- 90 C
- Finish
- Plastisol
- Material
- Plastisol
- Number Of Conductors
- 3
- Number Of Poles
- 1
- Size
- L=2.930 - W=2.280 - H=2.180 IN
- Standard
- cULus
- Sub Brand
- Polaris Black
- Temperature Rating
- 90 C
- Type
- Double Sided Entry
- Voltage Rating
- 600 V
- Wire Size
- 250 MCM-6 AWG
- Wire Type
- Class B & C
