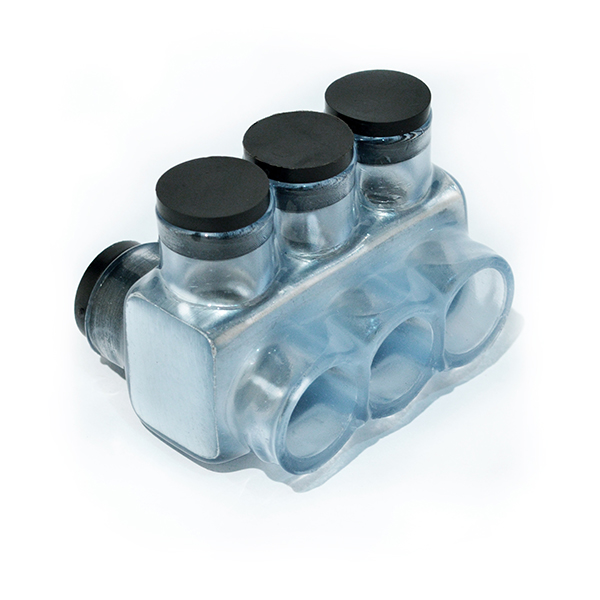

3 Wire Polaris Vision Tap 3/0 - 6 AWG Insulated Multi-Cable Connector Block, Either Side Wire Entry Polaris Vision Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. Will not support combustion. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

IPLD3/0-3C

Manufacturer
Nsi Industries

$52.36 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

3 Wire Polaris Vision Tap 3/0 - 6 AWG Insulated Multi-Cable Connector Block, Either Side Wire Entry Polaris Vision Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. Will not support combustion. AL9CU. Cold temperature...

3 Wire Polaris Vision Tap 3/0 - 6 AWG Insulated Multi-Cable Connector Block, Either Side Wire Entry Polaris Vision Tap Connectors have wire entry ports on both sides of the connector to allow for access from either side. Eliminates the need for cover and taping. Insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable plugs to close the entry port not being utilized. Abrasion and chemical resistant. Will not support combustion. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.

150

UPC
662381996480
Color:
Colorless
Material:
Plastisol
Number Of Poles:
1
Size:
L=2.630 - W=1.830 - H=1.790 IN
Type:
Double Sided Entry
Voltage Rating:
600 V
Color:
Colorless
Enclosure:
Clear Plastisol
Environmental Conditions:
Dry Location Only
Finish:
Plastisol
Material:
Plastisol
Number Of Conductors:
3
Number Of Poles:
1
Size:
L=2.630 - W=1.830 - H=1.790 IN
Standard:
cULus
Sub Brand:
Polaris Vision Tap
Temperature Rating:
90 C
Type:
Double Sided Entry
Voltage Rating:
600 V
Wire Size:
3/0-6 AWG
Wire Type:
Class B & C
