IPLDH750-3
SKU: IPLDH750-3
MPN: IPLDH750-3
Key specs
View all- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=4.950 - W=4.460 - H=3.300 IN
- Type
- Double Sided Entry Heavy Duty
- Voltage Rating
- 600 V
Description
Product overview

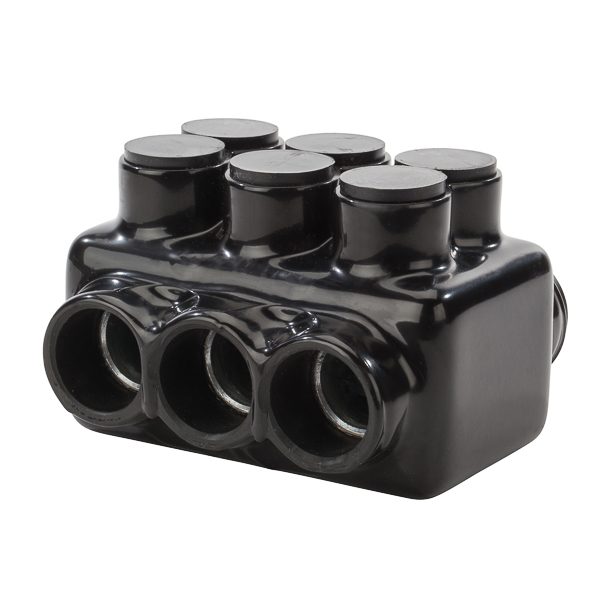

3 Wire Polaris Insulated 750 - 250 MCM Heavy Duty Connector Block, Either Side Wire Entry Polaris Insul-Tap Heavy Duty Connectors are double the size of the standard IPLD Series connector with two pressure screws provided for each cable to ensure the best connection possible. Designed, built and tested to handle even the most demanding applications from 250 MCM to 750 MCM. Insulated with high-dielectric strength plastisol molded for a precise fit. Supplied with removable access plugs to allow fo...
3 Wire Polaris Insulated 750 - 250 MCM Heavy Duty Connector Block, Either Side Wire Entry Polaris Insul-Tap Heavy Duty Connectors are double the size of the standard IPLD Series connector with two pressure screws provided for each cable to ensure the best connection possible. Designed, built and tested to handle even the most demanding applications from 250 MCM to 750 MCM. Insulated with high-dielectric strength plastisol molded for a precise fit. Supplied with removable access plugs to allow for cable entry from either side of the connector. Eliminates the need for cover and taping. Abrasion and chemical resistant. UV Resistant. Will not support combustion. UL Listed 486B Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, Rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI IPLDH750-3 750-250 MCM UL POLAR
- Invoice description
- POLARIS HD Ins Multi-Tap 750 3 Port DSE
Specifications
- UPC
- 662381926500
- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=4.950 - W=4.460 - H=3.300 IN
- Type
- Double Sided Entry Heavy Duty
- Voltage Rating
- 600 V
- Color
- Black
- Environmental Conditions
- 90 C
- Finish
- Plastisol
- Material
- Plastisol
- Number Of Conductors
- 3
- Number Of Poles
- 1
- Size
- L=4.950 - W=4.460 - H=3.300 IN
- Standard
- cULus
- Sub Brand
- Polaris Black
- Temperature Rating
- 90 C
- Type
- Double Sided Entry Heavy Duty
- Voltage Rating
- 600 V
- Wire Size
- 750-250 MCM
- Wire Type
- Class B & C
