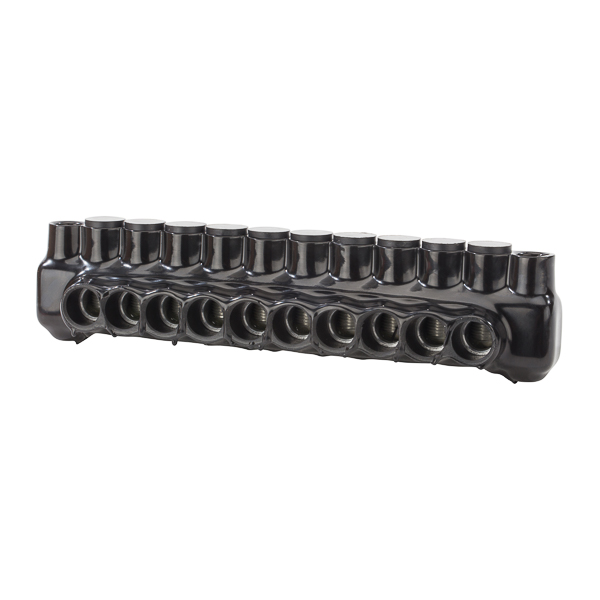

10 Wire Polaris 250 MCM-6 AWG Insulated Multi-Cable Connector with Mounting Holes, Either Side Wire Entry Polaris Insulated Multi-Cable Connectors have wire entry ports on both sides of the connector to allow for access from either side. Mounting holes at each end of the connector allow for direct isolated mounting to the trough, panel or wireway. IPLMD Series connectors are insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the hex screws. Eliminates the need for cover and taping. Abrasion and chemical resistant. UV resistant. Will not support combustion. Mounting holes will accept a 1/4

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

IPLMD250-10

Manufacturer
Nsi Industries

$244.58 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

10 Wire Polaris 250 MCM-6 AWG Insulated Multi-Cable Connector with Mounting Holes, Either Side Wire Entry Polaris Insulated Multi-Cable Connectors have wire entry ports on both sides of the connector to allow for access from either side. Mounting holes at each end of the connector allow for direct isolated mounting to the trough, panel or wireway. IPLMD Series connectors are insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over th...

10 Wire Polaris 250 MCM-6 AWG Insulated Multi-Cable Connector with Mounting Holes, Either Side Wire Entry Polaris Insulated Multi-Cable Connectors have wire entry ports on both sides of the connector to allow for access from either side. Mounting holes at each end of the connector allow for direct isolated mounting to the trough, panel or wireway. IPLMD Series connectors are insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the hex screws. Eliminates the need for cover and taping. Abrasion and chemical resistant. UV resistant. Will not support combustion. Mounting holes will accept a 1/4" bolt for 3/0 AWG and a 5/16" bolt for 250 MCM and 350 MCM. UL Listed 486B Wire Connector. AL9CU. Cold temperature rated to -45 degrees C, rated 600V, 90 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.

150

UPC
662381943088
Color:
Black
Material:
Plastisol
Number Of Poles:
1
Size:
L=10.400 - W=2.280 - H=2.370 IN
Type:
Double Sided Entry With Mounting Holes
Voltage Rating:
600 V
Color:
Black
Environmental Conditions:
90 C
Finish:
Plastisol
Material:
Plastisol
Number Of Conductors:
10
Number Of Poles:
1
Size:
L=10.400 - W=2.280 - H=2.370 IN
Standard:
cULus
Sub Brand:
Polaris Black
Temperature Rating:
90 C
Type:
Double Sided Entry With Mounting Holes
Voltage Rating:
600 V
Wire Size:
250 MCM-6 AWG
Wire Type:
Class B & C
