Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$222.97 / EA
Local stock: 0
Lead time:
over 7 working days

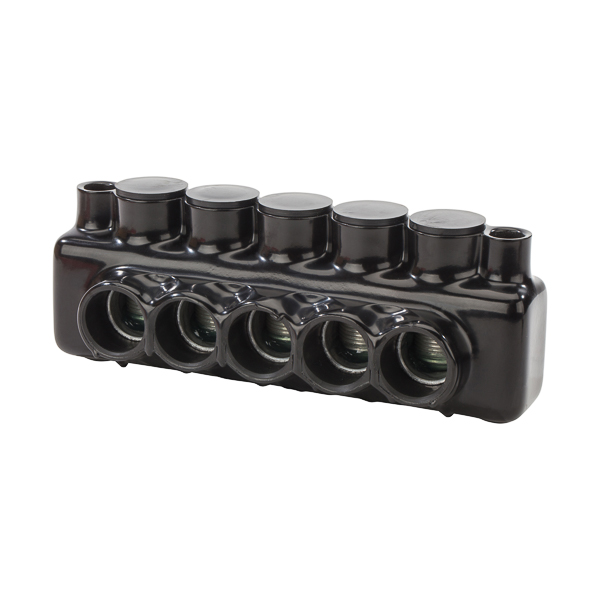

5 Wire Polaris 600 MCM-6 AWG Insulated Multi-Cable Connector with Mounting Holes, Either Side Wire Entry Polaris Insulated Multi-Cable Connectors have wire entry ports on both sides of the connector to allow for access from either side. Mounting holes at each end of the connector allow for direct isolated mounting to the trough, panel or wireway. IPLMD Series connectors are insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the...
5 Wire Polaris 600 MCM-6 AWG Insulated Multi-Cable Connector with Mounting Holes, Either Side Wire Entry Polaris Insulated Multi-Cable Connectors have wire entry ports on both sides of the connector to allow for access from either side. Mounting holes at each end of the connector allow for direct isolated mounting to the trough, panel or wireway. IPLMD Series connectors are insulated with high-dielectric strength plastisol. Molded for precise fit and supplied with removable access plugs over the hex screws. Eliminates the need for cover and taping. Abrasion and chemical resistant. UV resistant. Will not support combustion. Mounting holes will accept a 1/4" bolt for 3/0 AWG and a 5/16" bolt for 250 MCM and 350 MCM. UL Listed 486B Wire Connector. AL7U and Cold temperature rated to -45 degrees C, rated 600V, 75 degrees C. Dual rated for use with copper and/or aluminum cables. Not recommended for fine-stranded, flexible wire.
150
- UPC
- 662381789174
- Color:
- Black
- Material:
- Plastisol
- Number Of Poles:
- 1
- Size:
- L=8.480 - W=2.960 - H=3.150 IN
- Type:
- Double Sided Entry With Mounting Holes
- Voltage Rating:
- 600 V
- Color:
- Black
- Environmental Conditions:
- 75 C
- Finish:
- Plastisol
- Material:
- Plastisol
- Number Of Conductors:
- 5
- Number Of Poles:
- 1
- Size:
- L=8.480 - W=2.960 - H=3.150 IN
- Standard:
- cULus
- Sub Brand:
- Polaris Black
- Temperature Rating:
- 75 C
- Type:
- Double Sided Entry With Mounting Holes
- Voltage Rating:
- 600 V
- Wire Size:
- 600 MCM-6 AWG
- Wire Type:
- Class B & C
