ISR-500
SKU: ISR-500
MPN: ISR-500
Key specs
View all- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=4.620 - W=1.620 - H=3.000 IN
- Type
- IN-Line Splicer/Reducer
- Voltage Rating
- 600 V
Description
Product overview

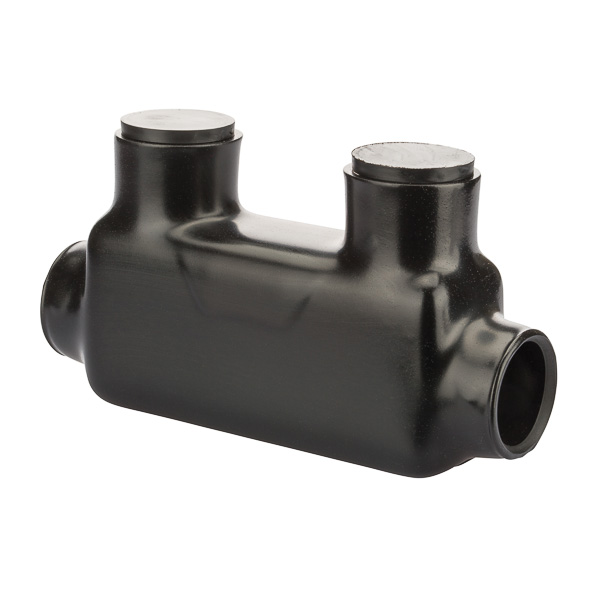

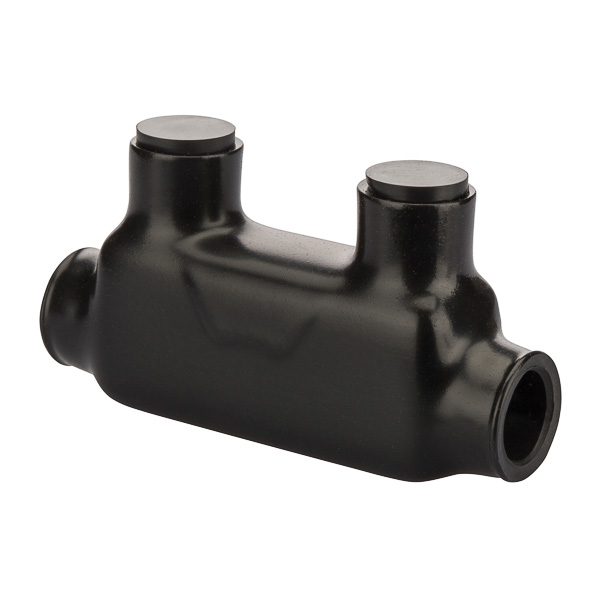

500MCM -4 AWG Polaris InsulatedIn-Line SpliceConnector Polaris Insulated In-Line Splice Connectors are suitable for connecting two wires. Abrasion and chemical resistant. UV rated. Will not support combustion. Cold temperature rated to -45 degrees Celsius. Dual rated for use with copper and/or aluminum cables. 600 volts. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series).
500MCM -4 AWG Polaris InsulatedIn-Line SpliceConnector Polaris Insulated In-Line Splice Connectors are suitable for connecting two wires. Abrasion and chemical resistant. UV rated. Will not support combustion. Cold temperature rated to -45 degrees Celsius. Dual rated for use with copper and/or aluminum cables. 600 volts. Not recommended for fine-stranded, flexible wire (see Polaris Grey Series).
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI ISR-500 500 MCM - 4 AWG POLARIS
- Invoice description
- POLARIS Ins Splice 500
Specifications
- UPC
- 662381951045
- Color
- Black
- Material
- Plastisol
- Number Of Poles
- 1
- Size
- L=4.620 - W=1.620 - H=3.000 IN
- Type
- IN-Line Splicer/Reducer
- Voltage Rating
- 600 V
- Color
- Black
- Environmental Conditions
- 90 C
- Finish
- Plastisol
- Material
- Plastisol
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=4.620 - W=1.620 - H=3.000 IN
- Standard
- cULus
- Sub Brand
- Polaris Black
- Temperature Rating
- 90 C
- Type
- IN-Line Splicer/Reducer
- Voltage Rating
- 600 V
- Wire Size
- 500 MCM-4 AWG
- Wire Type
- Class B & C
