JHL70
SKU: JHL70
MPN: JHL70
Key specs
View all- Amperage Rating
- 70 A
- Type
- Fuse
- Voltage Rating
- 600 V
Description
Product overview

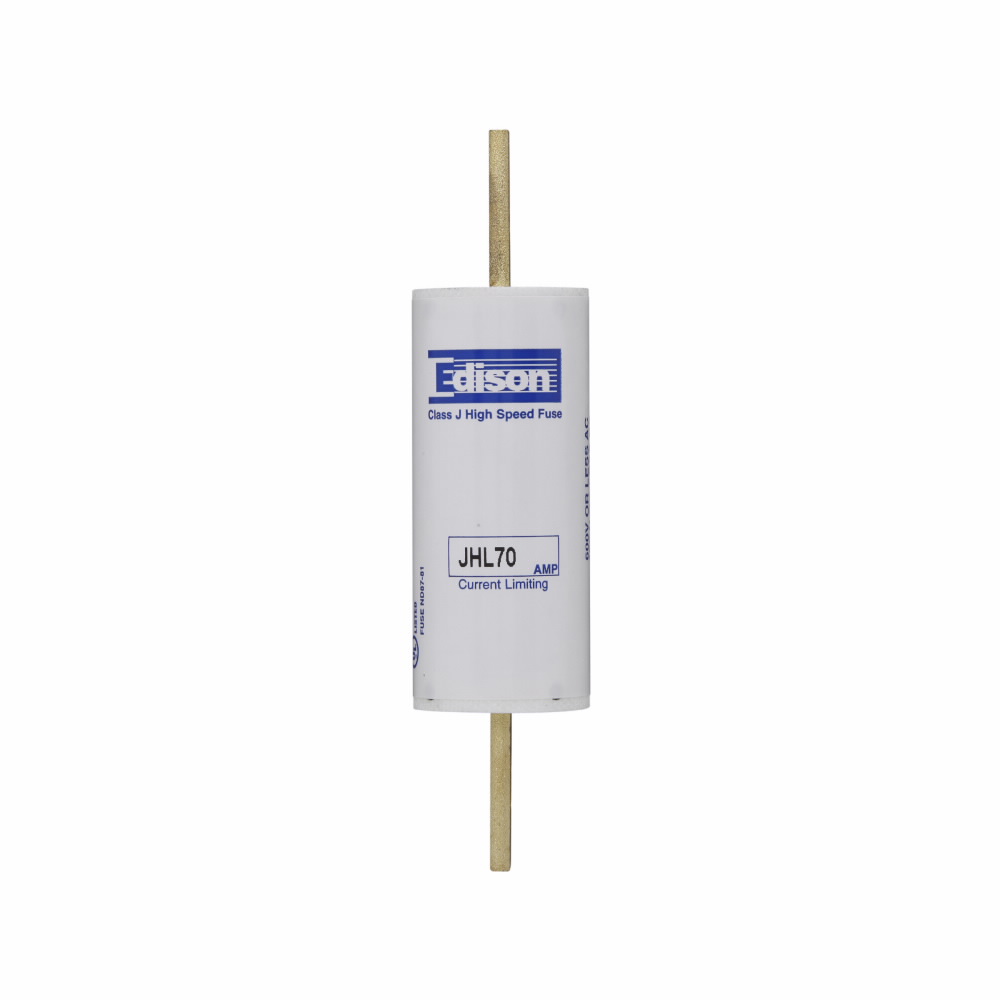

Eaton Edison JHL high speed fuse, 600V, Standard, 70 A
Eaton Edison JHL high speed fuse, 600V, Standard, 70 A
Manufacturer highlights
Edison's UL Class J fuse products are offered in both Dual-Element Time-Delay (JDL) and Fast-Acting (JFL) types. Both types have 200,000 amp interrupt...
Edison's UL Class J fuse products are offered in both Dual-Element Time-Delay (JDL) and Fast-Acting (JFL) types. Both types have 200,000 amp interrupting rating at 600Vac RMS Sym amps. Their small physical size and high performance characteristics makes Class J fuses ideal for any space-limited applications. Edison's JFL fuses are best suited for the protection of non-inductive loads such as resistive heating and lighting circuits.
Additional manufacturer notes
- Short name
- EFSE
- Feed description
- EFSE JHL70 Edison High Speed Class
- Invoice description
- Edison High Speed Class J Fuse
Specifications
- UPC
- 782634107323
- UNSPSC
- 39121628
- Country of Origin
- MX
- Amperage Rating
- 70 A
- Type
- Fuse
- Voltage Rating
- 600 V
- Amperage Rating
- 70 A
- Dimensions
- 1.5000 IN X 1.5000 IN X 5.0000 IN
- Standard
- RoHS Compliant,Contact factory
- Sub Brand
- Edison
- Type
- Fuse
- Voltage Rating
- 600 V
Do you have a question about JHL70?
