JP60030-3CR
SKU: JP60030-3CR
MPN: JP60030-3CR
Key specs
View all- Amperage Rating
- 30 A
- Material
- Thermoplastic
- Size
- 3.29 In Length X 3.75 In Width X 2.78 In Height
- Type
- Pyramid fuse block
- Voltage Rating
- 600 V
Description
Product overview

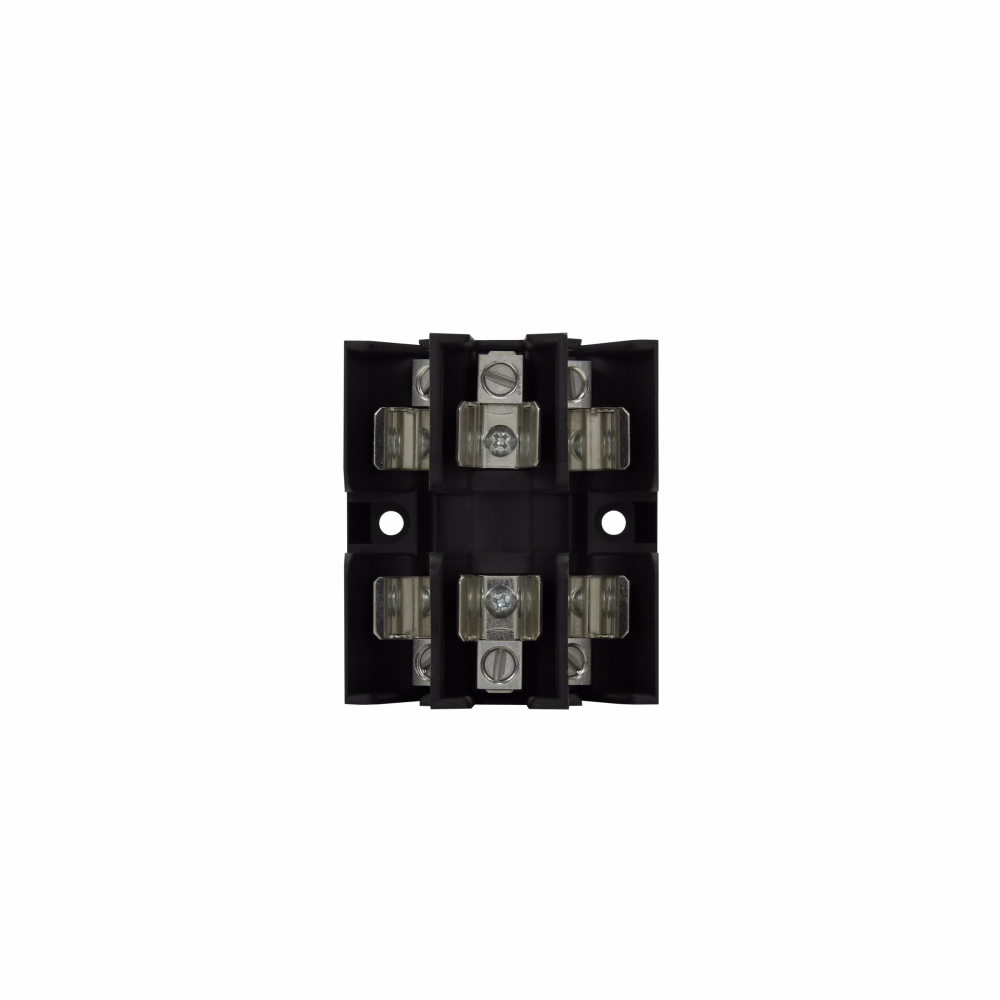

Eaton Bussmann series JP pyramid fuse block, 600V, 30A
Eaton Bussmann series JP pyramid fuse block, 600V, 30A
Manufacturer highlights
Eatons Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented desig...
Eatons Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS JP60030-3CR J PYRAMID FUSE BLO
- Invoice description
- J PYRAMID FUSE BLOCK
Specifications
- UPC
- 051712434164
- UNSPSC
- 39121624
- Country of Origin
- MX
- Amperage Rating
- 30 A
- Material
- Thermoplastic
- Size
- 3.29 In Length X 3.75 In Width X 2.78 In Height
- Type
- Pyramid fuse block
- Voltage Rating
- 600 V
- Amperage Rating
- 30 A
- Class
- J
- Dimensions
- 0.0010 IN X 0.0010 IN X 0.0010 IN
- Material
- Thermoplastic
- Mounting
- Panel
- Size
- 3.29 In Length X 3.75 In Width X 2.78 In Height
- Standard
- Contact Manufacturer,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- Pyramid fuse block
- Voltage Rating
- 600 V
