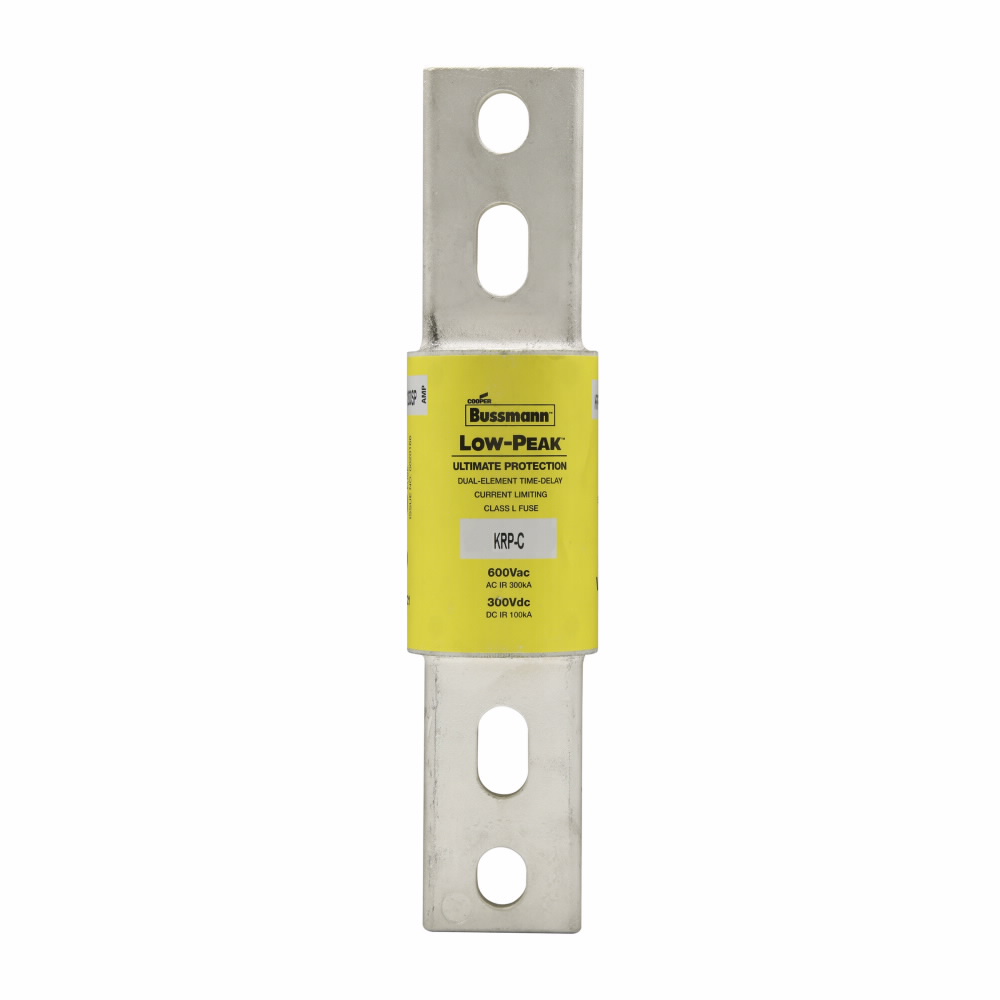

Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1200 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1200 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1200 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1200 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

KRP-C-1200SP

Manufacturer
Bussman Fuse

$1,383.02 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1200 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc

Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 1200 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, 600 V, 300 Vdc

Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering un...150

Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering unsurpassed dual-element, current-limiting, time-delay performance and interrupting ratings of 300kA RMS Sym. Complementing the Low-Peak family are our Limitron products offering both Fast-acting and economical time-delay performance in our KTU, KLU, and KRP-CL products

UPC
051712605120
UNSPSC
39121626
Country of Origin
MX
Amperage Rating:
1,200 A
Material:
Melamine Glass Tube
Size:
2.50 In Diameter X 10.75 In Length
Type:
Fuse
Voltage Rating:
600//300 VAC//VDC
Amperage Rating:
1,200 A
Class:
L
Connection:
Bolted blade end x bolted blade end
Dimensions:
10.7500 IN X 2.7800 IN X 2.7800 IN
Interrupt Rating:
300 kAIC at 600 Vac100 kAIC Vdc
Material:
Melamine Glass Tube
Response Time:
4 sec at 500%
Size:
2.50 In Diameter X 10.75 In Length
Standard:
RoHS Compliant,CE Marked
Sub Brand:
Bussmann Series
Type:
Fuse
Voltage Rating:
600//300 VAC//VDC
