L1048

SKU: L1048

MPN: L1048

Key specs

View all
Color
Pink
Material
Copper
Size
L=2.50 - W=.744 - OD=.520 - ID=.390
Type
Long Barrel - One Hole
Voltage Rating
600 V

Description

Product overview

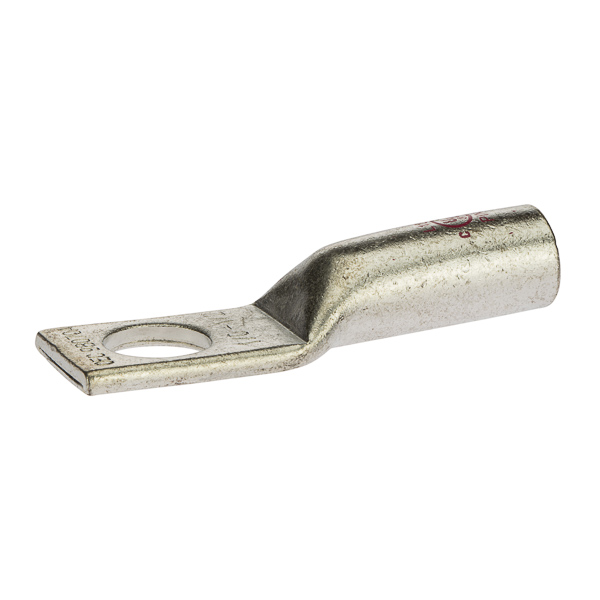

1 Hole Long Barrel Copper Compression Lug 1&frasl-0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .

1 Hole Long Barrel Copper Compression Lug 1&frasl-0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .

Manufacturer highlights

Additional manufacturer notes

Feed description
NSI L1048 CU CMP Lug Long 1/0 AWG 1
Invoice description
CU CMP Lug Long 1/0 AWG 1/2 Bolt Size

Specifications

UPC
662381034076
Color
Pink
Material
Copper
Size
L=2.50 - W=.744 - OD=.520 - ID=.390
Type
Long Barrel - One Hole
Voltage Rating
600 V
Cable Size
1/0 AWG (STR)
Color
Pink
Environmental Conditions
90 C
Material
Copper
Mounting
1/2 Mounting Hole
Number Of Holes
1
Size
L=2.50 - W=.744 - OD=.520 - ID=.390
Standard
UL486
Stud Size
0.5 in
Sub Brand
Copper Compression
Type
Long Barrel - One Hole
Voltage Rating
600 V
