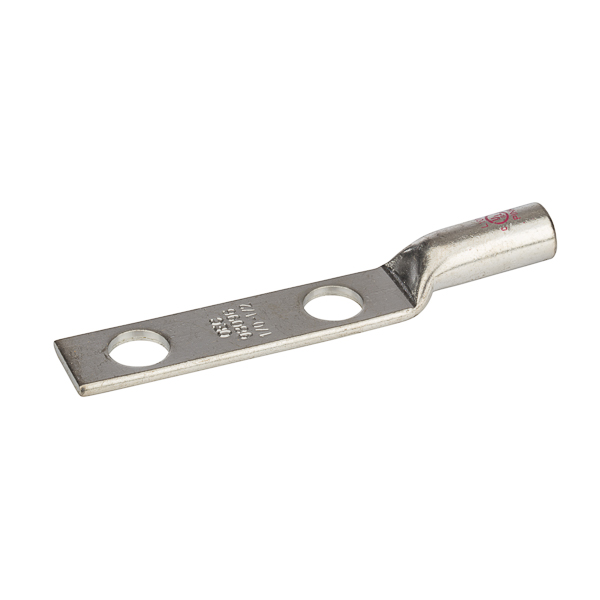

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 1/2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

L10N

Manufacturer
Nsi Industries

$112.75 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

150

UPC
662381035097
Color:
Pink
Material:
Copper
Size:
L=4.63 - W=.740 - OD=.520 - ID=.390
Type:
Long Barrel - Two Hole
Voltage Rating:
600 V
Cable Size:
1/0 AWG (STR)
Color:
Pink
Environmental Conditions:
90 C
Material:
Copper
Mounting:
1/2 Mounting Holes
Number Of Holes:
2
Size:
L=4.63 - W=.740 - OD=.520 - ID=.390
Standard:
UL486
Stud Size:
0.5 in
Sub Brand:
Copper Compression
Type:
Long Barrel - Two Hole
Voltage Rating:
600 V
