L10N-38

SKU: L10N-38

MPN: L10N-38

Key specs

View all
Color
Pink
Material
Copper
Size
L=3.21 - W=.740 - OD=.520 - ID=.390
Type
Long Barrel - Two Hole
Voltage Rating
600 V

Description

Product overview

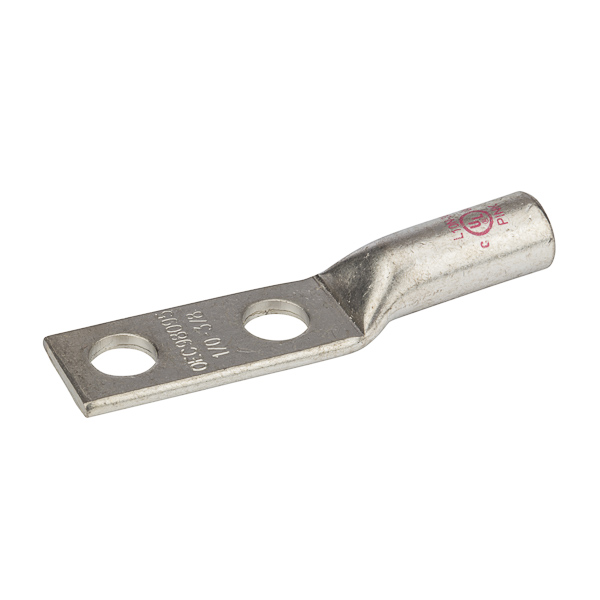

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 3/8" Bolt - 1" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C...

2 Hole Long Barrel Copper Compression Lug 1/0 AWG - 3/8" Bolt - 1" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

Manufacturer highlights

Additional manufacturer notes

Feed description
NSI L10N-38 CU CMP Lug Long 1/0 AWG
Invoice description
CU CMP Lug Long 1/0 AWG 3/8 Bolt 1 Spac

Specifications

UPC
662381339133
Color
Pink
Material
Copper
Size
L=3.21 - W=.740 - OD=.520 - ID=.390
Type
Long Barrel - Two Hole
Voltage Rating
600 V
Cable Size
1/0 AWG (STR)
Color
Pink
Environmental Conditions
90 C
Material
Copper
Mounting
3/8 Mounting Holes
Number Of Holes
2
Size
L=3.21 - W=.740 - OD=.520 - ID=.390
Standard
UL486
Stud Size
0.375 in
Sub Brand
Copper Compression
Type
Long Barrel - Two Hole
Voltage Rating
600 V

Rate this product

Do you have a question about L10N-38?

L10N-38

$113.78 / EA
