- Certification Agency
- PROP65
- Certification Number
- No
$1.23 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

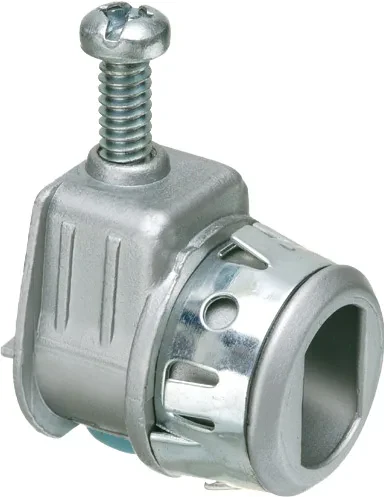

Single screw zinc die-cast saddle type connector with spring steel clip for NM, Flex, AC, ACG90, AC90 Teck90 MCI steel and aluminum jacketed cables. Cable range .370 to .690 with an end stop diameter of .312.
Single screw zinc die-cast saddle type connector with spring steel clip for NM, Flex, AC, ACG90, AC90 Teck90 MCI steel and aluminum jacketed cables. Cable range .370 to .690 with an end stop diameter of .312.
150
- UPC
- 018997800657
- UNSPSC
- 39121419
- Country of Origin
- USA
- Color:
- Silver
- Material:
- Zinc
- Size:
- L(1.092) x W(1.092) x H(1.032) IN
- Color:
- Silver
- Material:
- Zinc
- Size:
- L(1.092) x W(1.092) x H(1.032) IN
- Standard:
- CULUS and CSA
151-TOPAZ
$0.67 /ea
1/2" Straight Squeeze Type BX-Flex Connector
| Attributed Data | Included |
|---|---|
| Connection | Threaded x Squeeze Yes |
| Label Description | BX-FLEX CONNECTORS STRAIGHT Yes |
| Material | Die Cast Zinc Yes |
| Standard | UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D Yes |
| Type | Straight Squeeze BX-Flex Connector Yes |
100-TOPAZ
$0.77 /ea
3/8" 90� Squeeze Type BX-Flex Connector
| Attributed Data | Included |
|---|---|
| Connection | Threaded x Squeeze Yes |
| Label Description | BX-FLEX CONNECTOR-90° Yes |
| Material | Die Cast Zinc Yes |
| Standard | UL 514B, UL File Number E26493, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D Yes |
| Type | 90 DEG Angle Squeeze BX-Flex Connector Yes |
156-TOPAZ
$5.03 /ea
2" Straight Squeeze Type BX-Flex Connector
| Attributed Data | Included |
|---|---|
| Connection | Threaded x Squeeze Yes |
| Label Description | BX-FLEX CONNECTORS STRAIGHT Yes |
| Material | Die Cast Zinc Yes |
| Standard | UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D Yes |
| Type | Straight Squeeze BX-Flex Connector Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
151-TOPAZ
1/2" Straight Squeeze Type BX-Flex Connector
$0.67 / EA
|
100-TOPAZ
3/8" 90� Squeeze Type BX-Flex Connector
$0.77 / EA
|
156-TOPAZ
2" Straight Squeeze Type BX-Flex Connector
$5.03 / EA
|
|
| Attributed Data | |||
| Cable Diameter | 0.43 to 0.72 IN 0.43 to 0.72 IN | 0.74 to 0.95 IN 0.74 to 0.95 IN | 2.08 to 2.56 IN 2.08 to 2.56 IN |
| Connection | Threaded x Squeeze Threaded x Squeeze | ||
| Connectors (IN) | Threaded x Squeeze IN Threaded x Squeeze IN | ||
| Label Description | BX-FLEX CONNECTOR-90° BX-FLEX CONNECTOR-90° | BX-FLEX CONNECTORS STRAIGHT BX-FLEX CONNECTORS STRAIGHT | |
| Length | 1.47 IN 1.47 IN | 1.740 IN 1.740 IN | 2.34 IN 2.34 IN |
| Material | Die Cast Zinc Die Cast Zinc | ||
| Size | 1/2 IN 1/2 IN | 2 IN 2 IN | 3/8, 1/2 KO IN 3/8, 1/2 KO IN |
| Size (IN) | 1/2" IN 1/2" IN | 2" IN 2" IN | 3/8" 1/2" KO IN 3/8" 1/2" KO IN |
| Standard | UL 514B, UL File Number E26493, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D UL 514B, UL File Number E26493, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D | UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D | |
| Thread Length | 0.370 IN 0.370 IN | 0.400 IN 0.400 IN | 0.740 IN 0.740 IN |
| Type | 90 DEG Angle Squeeze BX-Flex Connector 90 DEG Angle Squeeze BX-Flex Connector | Straight Squeeze BX-Flex Connector Straight Squeeze BX-Flex Connector | |
