L1N-38
SKU: L1N-38
MPN: L1N-38
Key specs
View all- Color
- Green
- Material
- Copper
- Size
- L=3.07 - W=.670 - OD=.470 - ID=.360
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

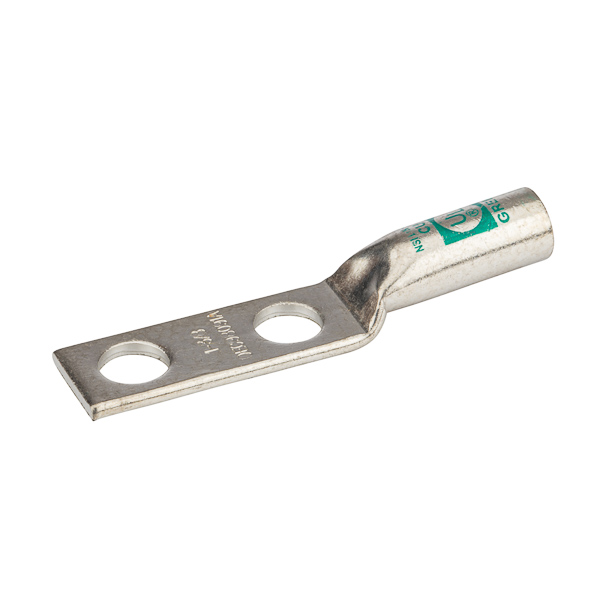

2 Hole Long Barrel Copper Compression Lug 1 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
2 Hole Long Barrel Copper Compression Lug 1 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI L1N-38 CU CMP Lug Long 1 AWG 3/
- Invoice description
- CU CMP Lug Long 1 AWG 3/8 Bolt 1 Spac
Specifications
- UPC
- 662381339102
- Color
- Green
- Material
- Copper
- Size
- L=3.07 - W=.670 - OD=.470 - ID=.360
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- # 1 AWG (STR)
- Color
- Green
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Holes
- Number Of Holes
- 2
- Size
- L=3.07 - W=.670 - OD=.470 - ID=.360
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
