$112.75 / EA
Local stock: 0
Lead time:
over 7 working days

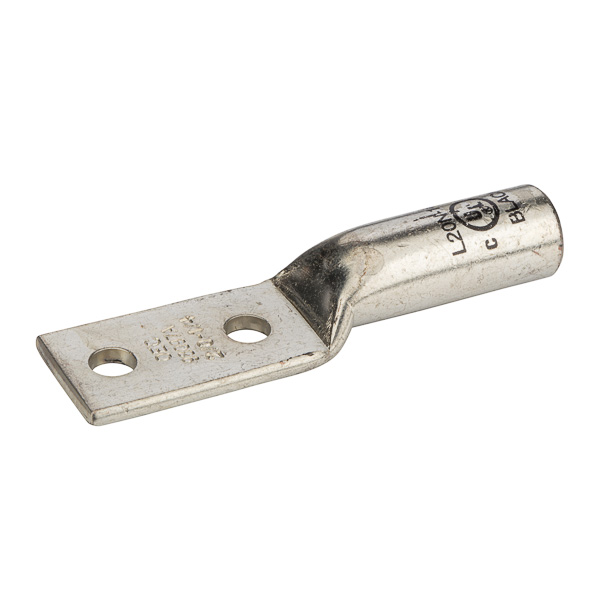

2 Hole Long Barrel Copper Compression Lug 2/0 AWG - 1/4 Inch Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
2 Hole Long Barrel Copper Compression Lug 2/0 AWG - 1/4 Inch Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
150
- UPC
- 662381339157
- Color:
- Black
- Material:
- Copper
- Size:
- L=2.99 - W=.810 - OD=.560 - ID=.440
- Type:
- Long Barrel - Two Hole
- Voltage Rating:
- 600 V
- Cable Size:
- 2/0 AWG (STR)
- Color:
- Black
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 1/4 Mounting Holes
- Number Of Holes:
- 2
- Size:
- L=2.99 - W=.810 - OD=.560 - ID=.440
- Standard:
- UL486
- Stud Size:
- 0.25 in
- Sub Brand:
- Copper Compression
- Type:
- Long Barrel - Two Hole
- Voltage Rating:
- 600 V
