Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$145.06 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

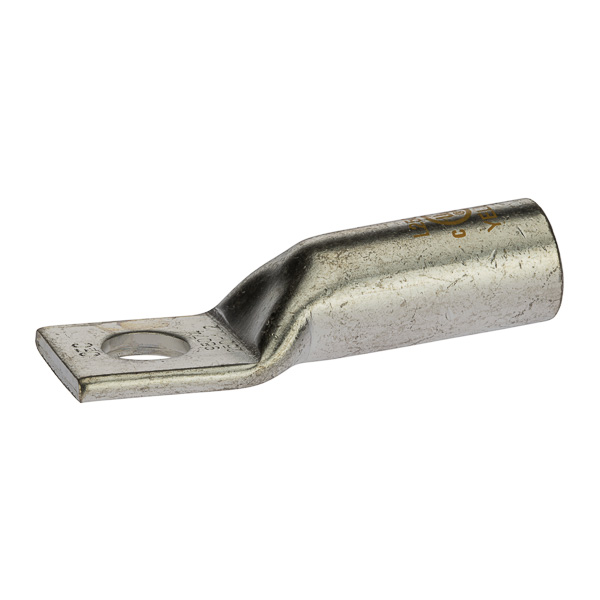

1 Hole Long Barrel Copper Compression Lug 250 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
1 Hole Long Barrel Copper Compression Lug 250 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
150
- UPC
- 662381034137
- Color:
- Yellow
- Material:
- Copper
- Size:
- L=3.03 - W=1.09 - OD=.752 - ID=.594
- Type:
- Long Barrel - One Hole
- Voltage Rating:
- 600 V
- Cable Size:
- 250 MCM (STR)
- Color:
- Yellow
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 1/2 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=3.03 - W=1.09 - OD=.752 - ID=.594
- Standard:
- UL486
- Stud Size:
- 0.5 in
- Sub Brand:
- Copper Compression
- Type:
- Long Barrel - One Hole
- Voltage Rating:
- 600 V
