L2N-141
SKU: L2N-141
MPN: L2N-141
Key specs
View all- Color
- Brown
- Material
- Copper
- Size
- L=2.52 - W=.600 - OD=.420 - ID=.310
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

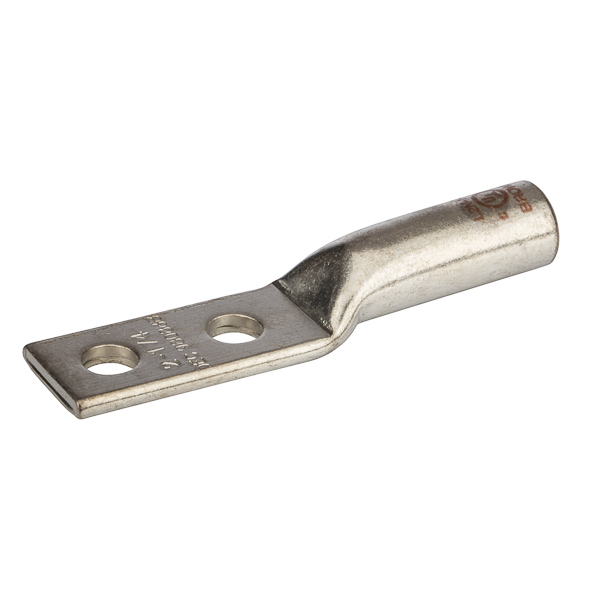

2 Hole Long Barrel Copper Compression Lug 2 AWG - 1/4" Bolt - 5/8" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C...
2 Hole Long Barrel Copper Compression Lug 2 AWG - 1/4" Bolt - 5/8" Mounting Spacing Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI L2N-141 CU CMP Lug Long 2 AWG 1
- Invoice description
- CU CMP Lug Long 2 AWG 1/4 Bolt 5/8 Spac
Specifications
- UPC
- 662381339058
- Color
- Brown
- Material
- Copper
- Size
- L=2.52 - W=.600 - OD=.420 - ID=.310
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- # 2 AWG (STR)
- Color
- Brown
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 1/4 Mounting Holes
- Number Of Holes
- 2
- Size
- L=2.52 - W=.600 - OD=.420 - ID=.310
- Standard
- UL486
- Stud Size
- 0.25 in
- Sub Brand
- Copper Compression
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
