L2N-56

SKU: L2N-56

MPN: L2N-56

Key specs

View all
Color
Brown
Material
Copper
Size
L=2.87 - W=.600 - OD=.420 - ID=.310
Type
Long Barrel - Two Hole
Voltage Rating
600 V

Description

Product overview

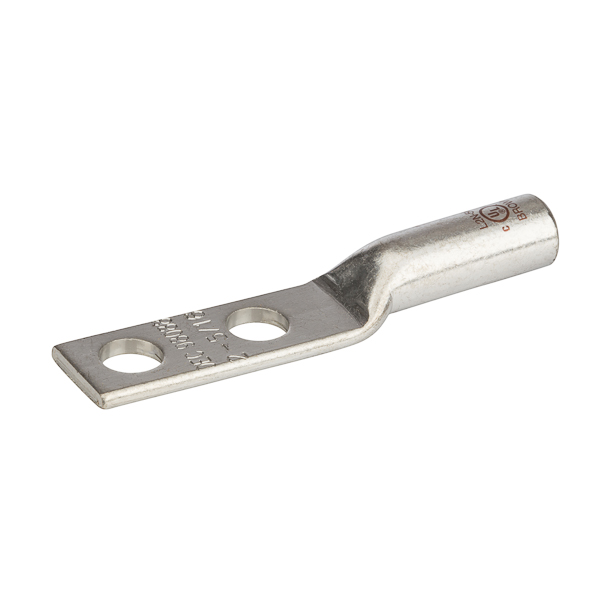

2 Hole Long Barrel Copper Compression Lug 2 AWG - 5/16" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

2 Hole Long Barrel Copper Compression Lug 2 AWG - 5/16" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

Manufacturer highlights

Additional manufacturer notes

Feed description
NSI L2N-56 CU CMP Lug Long 2 AWG 5/
Invoice description
CU CMP Lug Long 2 AWG 5/16 Bolt 3/4 Spa

Specifications

UPC
662381035042
Color
Brown
Material
Copper
Size
L=2.87 - W=.600 - OD=.420 - ID=.310
Type
Long Barrel - Two Hole
Voltage Rating
600 V
Cable Size
# 2 AWG (STR)
Color
Brown
Environmental Conditions
90 C
Material
Copper
Mounting
5/16 Mounting Holes
Number Of Holes
2
Size
L=2.87 - W=.600 - OD=.420 - ID=.310
Standard
UL486
Stud Size
0.3125 in
Sub Brand
Copper Compression
Type
Long Barrel - Two Hole
Voltage Rating
600 V

Rate this product

Do you have a question about L2N-56?

L2N-56

$130.24 / EA
