L30048
SKU: L30048
MPN: L30048
Key specs
View all- Color
- White
- Material
- Copper
- Size
- L=3.38 - W=1.18 - OD=.815 - ID=.657
- Type
- Long Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

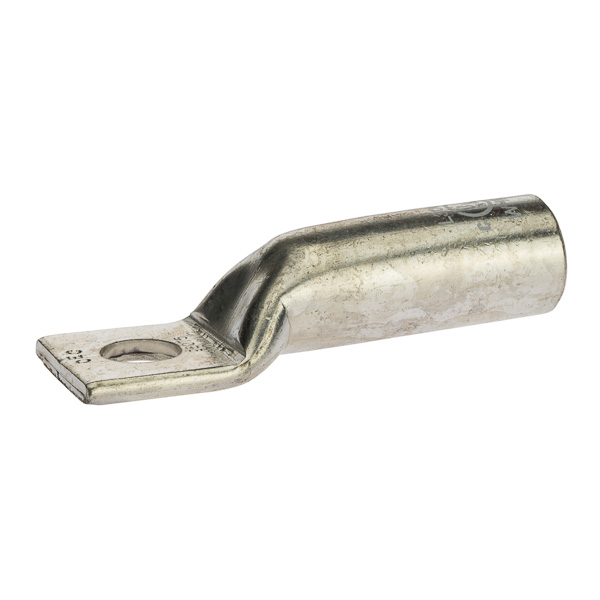

1 Hole Long Barrel Copper Compression Lug 300 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
1 Hole Long Barrel Copper Compression Lug 300 MCM - 1/2" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI L30048 CU CMP Lug Long 300 MCM
- Invoice description
- CU CMP Lug Long 300 MCM 1/2 Bolt Size
Specifications
- UPC
- 662381034144
- Color
- White
- Material
- Copper
- Size
- L=3.38 - W=1.18 - OD=.815 - ID=.657
- Type
- Long Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 300 MCM (STR)
- Color
- White
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 1/2 Mounting Hole
- Number Of Holes
- 1
- Size
- L=3.38 - W=1.18 - OD=.815 - ID=.657
- Standard
- UL486
- Stud Size
- 0.5 in
- Sub Brand
- Copper Compression
- Type
- Long Barrel - One Hole
- Voltage Rating
- 600 V
