L3038
SKU: L3038
MPN: L3038
Key specs
View all- Color
- Orange
- Material
- Copper
- Size
- L=2.79 - W=.902 - OD=.622 - ID=.492
- Type
- Long Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

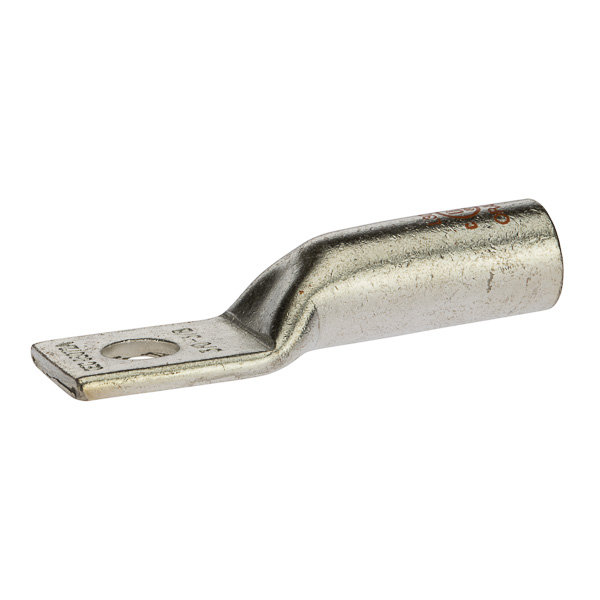

1 Hole Long Barrel Copper Compression Lug 3&frasl-0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
1 Hole Long Barrel Copper Compression Lug 3&frasl-0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. They are tin-plated to provide corrosion low contact resistance. Marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed and to cable manufacturer instructions. Temperature rating 90 degrees C. .
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI L3038 CU CMP Lug Long 3/0 AWG 3
- Invoice description
- CU CMP Lug Long 3/0 AWG 3/8 Bolt Size
Specifications
- UPC
- 662381034106
- Color
- Orange
- Material
- Copper
- Size
- L=2.79 - W=.902 - OD=.622 - ID=.492
- Type
- Long Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 3/0 AWG (STR)
- Color
- Orange
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=2.79 - W=.902 - OD=.622 - ID=.492
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Long Barrel - One Hole
- Voltage Rating
- 600 V
