$140.53 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

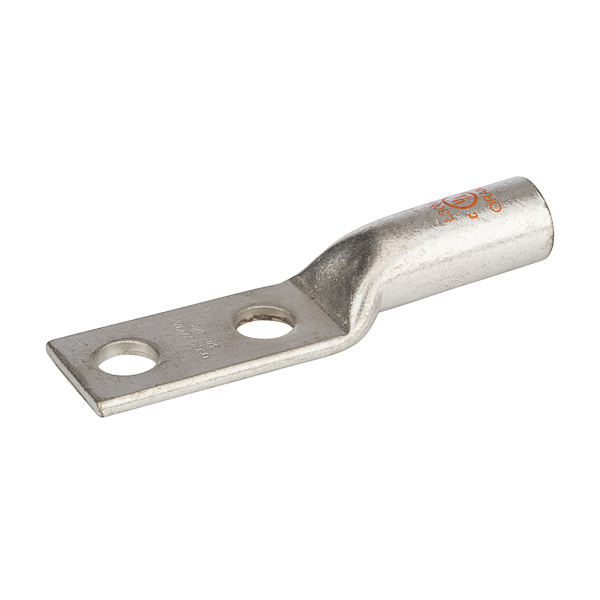

2 Hole Long Barrel Copper Compression Lug 3/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
2 Hole Long Barrel Copper Compression Lug 3/0 AWG - 3/8" Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.
150
- UPC
- 662381339171
- Color:
- Orange
- Material:
- Copper
- Size:
- L=3.50 - W=.900 - OD=.620 - ID=.490
- Type:
- Long Barrel - Two Hole
- Voltage Rating:
- 600 V
- Cable Size:
- 3/0 AWG (STR)
- Color:
- Orange
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 3/8 Mounting Holes
- Number Of Holes:
- 2
- Size:
- L=3.50 - W=.900 - OD=.620 - ID=.490
- Standard:
- UL486
- Stud Size:
- 0.375 in
- Sub Brand:
- Copper Compression
- Type:
- Long Barrel - Two Hole
- Voltage Rating:
- 600 V
