L350N-38
SKU: L350N-38
MPN: L350N-38
Key specs
View all- Color
- Red
- Material
- Copper
- Size
- L=4.21 - W=1.28 - OD=.870 - ID=.700
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

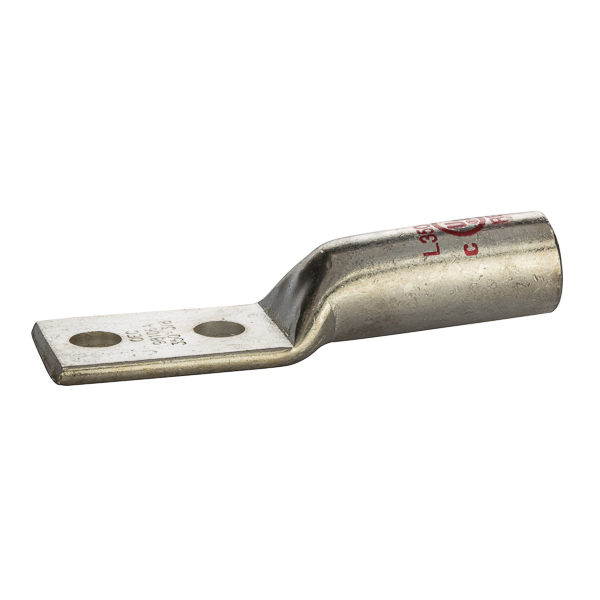

2Hole Long Barrel Copper Compression Lug350 MCM-3/8" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2Hole Long Barrel Copper Compression Lug350 MCM-3/8" Bolt Long Barrel Copper Compression Lugs is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI L350N-38 CU CMP Lug Long 350 MC
- Invoice description
- CU CMP Lug Long 350 MCM 3/8 Bolt 1 Spac
Specifications
- UPC
- 662381339232
- Color
- Red
- Material
- Copper
- Size
- L=4.21 - W=1.28 - OD=.870 - ID=.700
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- 350 MCM (STR)
- Color
- Red
- Environmental Conditions
- 90 C
- Material
- Copper
- Mounting
- 3/8 Mounting Holes
- Number Of Holes
- 2
- Size
- L=4.21 - W=1.28 - OD=.870 - ID=.700
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Copper Compression
- Type
- Long Barrel - Two Hole
- Voltage Rating
- 600 V
