L4N-38

SKU: L4N-38

MPN: L4N-38

Key specs

View all
Color
Gray
Material
Copper
Size
L=2.95 - W=.420 - OD=.340 - ID=.250
Type
Long Barrel - Two Hole
Voltage Rating
600 V

Description

Product overview

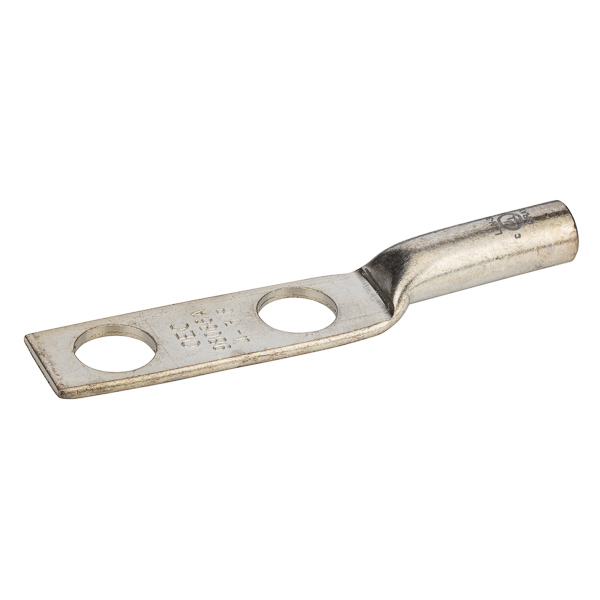

2 Hole Long Barrel Copper Compression Lug 4 AWG - 3/8" - 1" Mounting Spacing Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

2 Hole Long Barrel Copper Compression Lug 4 AWG - 3/8" - 1" Mounting Spacing Bolt Long Barrel Copper Compression Lugs are produced from high conductivity copper tubing. Allows easy inspection of the termination to assure complete cable insertion. Tin-plated to provide corrosion and low contact resistance. Marked with die index and color coded. Listed for 35KV maximum when properly installed. Rated 600V. cULus 486A/B Listed. UL467 Listed on sizes 6 AWG - 3/0 AWG. Temperature rating 90 degrees C.

Manufacturer highlights

Additional manufacturer notes

Short name
NSI
Feed description
NSI L4N-38 CU CMP Lug Long 4 AWG 3/
Invoice description
CU CMP Lug Long 4 AWG 3/8 Bolt 1 Spac

Specifications

UPC
662381339041
Color
Gray
Material
Copper
Size
L=2.95 - W=.420 - OD=.340 - ID=.250
Type
Long Barrel - Two Hole
Voltage Rating
600 V
Cable Size
# 4 AWG (STR)
Color
Gray
Environmental Conditions
90 C
Material
Copper
Mounting
3/8 Mounting Holes
Number Of Holes
2
Size
L=2.95 - W=.420 - OD=.340 - ID=.250
Standard
UL486
Stud Size
0.375 in
Sub Brand
Copper Compression
Type
Long Barrel - Two Hole
Voltage Rating
600 V
